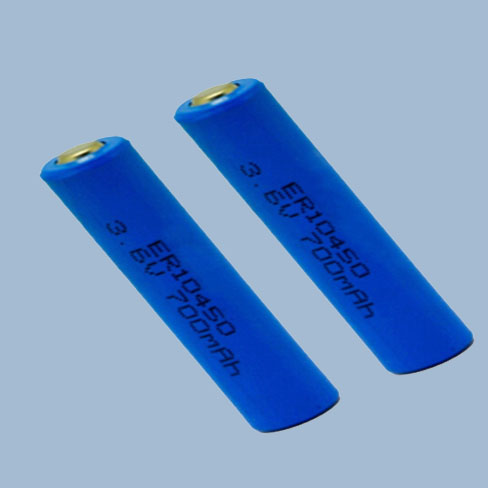

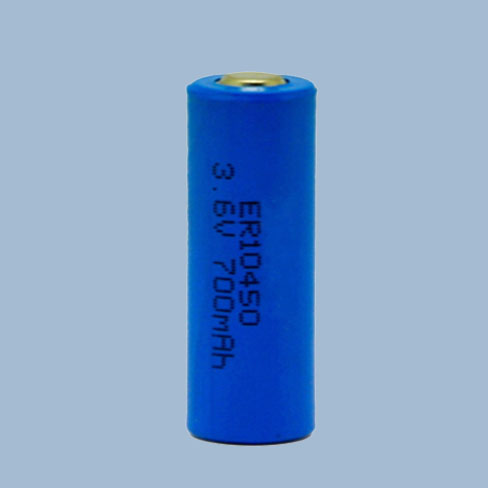

Best ER10450 battery 3.6V AAA Size Lithium Thionyl Chloride Batteries Lisocl2 primary battery pack factory

Best ER10450 battery 3.6V AAA Size Lithium Thionyl Chloride Batteries Lisocl2 primary battery pack factoryNew ER10450 Li-SOCl2 Battery high energy and small size AAA Lithium Thionyl Chloride 3.6V Battery Non-Rechargeable (Primary) ER 10450 battery

  • Model NO.:ER10450, ER10/45
  • Voltage:3.6V
  • Capacity:750mAh
  • Shape:Cylindrical
  • Battery Size:AAA
  • Brand:SER or OEM
  • Working temperature:-55°C~+85°C
  • Applications:PLC system,ETC system,Alarm System,Utility Meters, real-time clock,CMOS board memory and backup power, data backup, smart meter, heat meter, electronic measuring instrument, real-time monitoring system, flow meter, tax control machine, GPS tracking system

Li-SOCL2 Batteries  Catalogue(图1)




Battery Description:


Battery Model:

ER10450 /   AAA

Battery Brand:

SER or OEM

Battery Capacity:

750mAh ( at 0.5mA,under 25℃, 2.0V cut-off)

Dimension:

10.4 x 45mm

Open Circuit Voltage:

 ≥3.66V

Load Voltage:

3.2V

Max continuous discharge current

15mA ( to get 50% of capacity with 25℃, 2.0V cut-off)

Max Discharge current

25mA(1s pulse to 3.0V)

Working temperature:

-55~+85℃

Storage Life:

10 years

Storage condition:

clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated

Applications:

PLC system,ETC system,Alarm System,Utility Meters, real-time clock,CMOS board memory and backup power, data backup, smart meter, heat meter, electronic measuring instrument, real-time monitoring system, flow meter, tax control machine, GPS tracking system

High light:

Best ER10450 battery 3.6V AAA Size Lithium Thionyl Chloride Batteries Lisocl2 primary battery pack factory

New ER10450 Li-SOCl2 Battery high energy and small size AAA Lithium Thionyl Chloride 3.6V Battery Non-Rechargeable (Primary)  ER 10450 battery



Main Features:


1. High Voltage,ER10450 03.jpg

   The rated voltage is 3.6V, which is the highest voltage in the current non-rechargeable lithium battery series;

2. Stable working voltage

    At room temperature and medium current discharge, the discharge curve is extremely flat and stable; more than 90% of the battery capacity is output on a high-voltage platform with almost constant voltage;

3. Wide temperature range

    Can be used at temperature between -55°C ~ 85°C.The capacity at -40°C is about 50% of the standard capacity, showing excellent high and low temperature performance; High temperature range is -40~+150℃.

4. High energy density

   The specific energy of lithium-thionyl chloride battery is as high as 700Wh/kgL

5. Better storage life and reliability

    With particularly low self-discharge characteristics, less than 1% per year, and the shelf life of the battery has more than 10 years at room temperature.

6. Hermetic glass-to-metal sealing

     The manufacturing process of stainless steel shell and metal-glass hermetic welded structure.

7. Good security, safety

    Does not contain mercury, cadmium, lead and other heavy metals, Non-flammable electrolyte, no environmental hazards.

8.  ER10280 2/3 AAA Lithium Thionyl Chloride cell are available to order with a wide variety of solder pins, solder tags, axial wires,

and polarized solder Pin.


Warning:

Do not recharge, short circuit, crush, disassemble, heat above +125℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.




Applications:


Li-SOCL2 Batteries  Catalogue(图2)




Main applications:
Applications:

a.    Mainly used in the civil field: PLC system,ETC system,Alarm System,Utility Meters, real-time clocks

b.    Various smart meters; smart electricity meters, water meters, heat meters, gas meters

c .    Memory and backup power supply: memory backup, clock power supply, data backup power supply

d .    Radio alarms/sensors: smoke alarms, temperature monitors

e .    Remote monitoring system: positioning device, marine telemetry system

f .     Automotive electronics: automotive tire pressure monitoring system (TPMS), braking system

g.     Industrial field: microcomputer control system, tax control machine, automated instrumentation and equipment, oil wells, mines, medical equipment, burglar alarms, wireless communications, marine lifesaving, etc.

h .    Modern military fields: aviation, aerospace, marine electronics, amphibious weapons, etc.

i  .    AMR and CMOS circuit boards for public instruments
