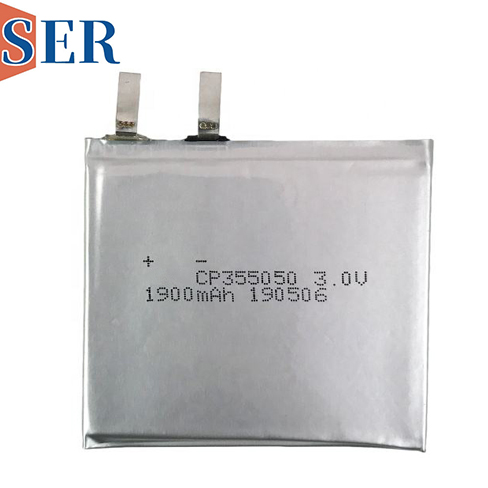

CP355050 Primary soft packing Lithium Manganese Dioxide pouch Battery 3.0V thin battery

CP355050 Primary soft packing Lithium Manganese Dioxide pouch Battery 3.0V 1900mAh NonRechargeable thin battery for tracker device

  • Model NO.:CP355050
  • Voltage:3.0V
  • Capacity:2000mAh
  • Shape:Pouch, Square
  • Battery Size:3.5*50*50mm
  • Brand:SER or OBM
  • Working temperature:-40℃~+70℃
  • Applications:RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card
Specification of CP355050 Lithium Manganese Dioxide pouch Battery:


Specification

Parameters

CP355050 Lithium Manganese Dioxide pouch Battery

Nominal

Voltage

 3.0V

Capacity

2000mAh @ 0.2C to 2.0 V @ 23° C

Dimension

3.5*50*50mm

Electrical

Constant Discharge Current

500mA

Max Discharge Current

1000 mA

Physical

Terminals/ Connector

Nickel Tabs, wire, plug or OEM

Others

Working Temperature

-20 +70℃

Storage Temperature

0~25℃

Applications

RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card

Tags

CP355050,CP355050 Battery, Primary soft packing battery, soft packing Lithium Manganese Dioxide Battery,3.0V 1900mAh, NonRechargeable thin battery,tracker device battery,thin battery,pouch Battery 3.0V


Features of CP355050 Lithium Manganese Dioxide pouch Battery:



     Characteristics of LiMNO2 flexible packaging battery: CP355050.jpg

1. Working voltage of 2.5 ~ 3.0 V, one battery can replace two dry batteries

2. Energy density of 450 Wh/kg, under the same weight, the capacity is 50% higher than the steel shell li-ion battery,

3. Wide Operating Temperature Range

   It can be used at -40 ~ 70 ° C

4. The self-discharge rate of 4 years is less than 1.5% , with a storage life of up to 10 years After long-time storage, it has good voltage response ability,

5. Flexible Design

    It has ultra-thin shape, its thinnest thickness can be up to 0.45 mm, to meet the thin and light shape requirements of modern electronic products;

6. Support customized battery.

   Shape size, capacity and load performance can be customized to meet customer needs;

7. Great safety.

   It is currently a relatively good safety and reliability of lithium metal batteries.

8. No voltage delay,NO passivation.



CP355050 smart card battery electronic tag battery, With the rise of all kinds of intelligent“Black technology” in the Internet of things, long-life, maintenance-free lithium-ion batteries have also entered the public's field of vision. At present, the mainstream lithium primary battery (also known as non-rechargeable lithium battery) , there are four main forms: cylindrical, square, button-type and ultra-thin soft packaging. The battery is made of aluminum-plastic composite film, and the internal structure is designed to provide good current output for applications with high pulse requirements, while the high capacity also greatly improves the service life of the equipment, in addition, the wide application temperature range (-40 ° C-80 ° C) , the entire life cycle does not need charge maintenance and other advantages, making the flexible packaging battery by the industry customers.



Lithium manganese dioxide battery (limno2 battery) includes cylindrical cell(CR), square cell(CP, softpackage), button(CR) and so on, CP battery is Square lithium manganese Battery with soft package

We have a professional R&D team, we are experienced to customize battery packs according to clients' demands and make most suitable battery solution for them.

        We have got our mindset stablished to be the best energy solution provider.



Thin Li-MnO2 Battery Model List


 Model SizeNominal CapacityMax Continuous Discharge CurrentMax Pulse Discharge Current
CP04252922mAh2mA4mA
CP04272215 mAh1mA2mA
CP04292215mAh1mA2mA
CP04404050mAh5mA10mA
CP044560100mAh10mA20mA
CP05203925 mAh2 mA4 mA
CP05272222mAh1mA2mA
CP05305080mAh15mA30mA
CP054248100mAh20mA40mA
CP064348200mAh20mA50mA
CP08292250 mAh20mA80mA
CP084248320mAh20mA50mA
CP10201530mAh2mA5mA
CP104248420mAh100mA200mA
CP105050420mAh100mA200mA
CP105075450mAh200mA300mA
CP105256500mAh30mA50mA
CP124444420 mAh75 mA150mA
CP142828160mAh25mA50mA
CP142828H140mAh50mA100mA
CP153030170mAh40mA80mA
CP153030H140mAh50mA100mA
CP1545801000mAh150mA300mA
CP15101518mAh0.5mA1mA
CP161230H45mAh16mA30mA
CP164548700mAh50mA100mA
CP181234125mAh25mA50mA
CP183123150mAh45mA75mA
CP202540350mAh75mA150mA
CP203030230mAh50mA100mA
CP203034270 mAh50 mA100mA
CP203040210mAh/380MAH100mA200mA
CP204517210mAh20mA50mA
CP204547750mAh50mA100mA
CP222920150mAh45mA75mA
CP224248850mAh100mA200mA
CP2250501000mAh200mA400mA
CP2250801700mAh200mA400mA
CP242030230mAh50mA100mA
CP2550501200mAh150mA300mA
CP251525150mAh40mA80mA
CP251626150mAh60mA150mA
CP252525250mAh30mA60mA
CP2550471250mAh150mA300mA
CP2550802050mAh300mA600mA
CP302525350mAh75 mA150 mA
CP3045802500mAh200mA500mA
CP321626250mAh50mA100mA
CP334728700mAh100mA200mA
CP352440750mAh100mA300mA
CP3550502000mAh500mA1000mA
CP402020275mAh50mA100mA
CP4534501700mAh300mA600mA
CP501525350mAh80mA150mA
CP5024401200mAh150mA300mA
CP5034361550mAh200mA500mA
CP5037421700mAh300mA600mA
CP5050503000mAh500mA1500mA
CP5435371500mAh200mA400mA
CP6034502400mAh500mA1000mA
CP6039563300mAh800mA1500mA
CP7022421500mAh200mA1200mA
CP7030281000mAh200mA400mA
CP7034482000mAh1000mA1500mA
CP8064688000mAh2000mA4000mA
CP78391099000mAh2000mA3000mA
CP9V1200mAh150mA300mA


Packing:

1. Packing in a tray +inner box+carton box.

2. Single battery packing in  PE bag+ inner box+ carton box.

3. Customized package etc.


Shipping method:

1. For samples, usually by express or by air.

2. For orders, by truck, by air ,by express or by sea depends on customer requirement.


Battery Production:




What we offer:

1. Strictly quality control

2. First rate service

3. Professional technical advisory

4. Complete production base

5. Continuous supply guarantee



Applications:

applications (2).jpg

 Widely used for :

1. Nonstop charging system;


2. Intelligent parking lot ;


3. Container identification;


4. Vehicle charge check;


5. Mine personnel identification;


6. Automated railcar identification management;


7. Automated road charge management;


8. Automated voyage passengers luggage identification transport management;


9. Vehicle entry and exit control;


10.Campus all-purpose card;


11.Repasting card and public transportation card;


12.Associator card, drive license card, and health(medical equipment)card;


13.Animal identification(raising cattle, sheep, pigeon,etc);


14.Automate management of logistic and storage;


15.Automobile remote control lock;


16.Intellectualized door etc.




We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.


NO MOQ with fast lead time.


Welcome for any customized.


All we do what we want to help you to start your good idea.
