Best low temperature discharge performance:
the lowest at-50 °C at 0.5 °C discharge, the efficiency of more than 81% ,-40 °C at 0.5 °C discharge, discharge capacity of 90%
|Capacity||Typical||500mAh||Measured at 0.2C discharge with 2.75V cut-off voltage, after standard charging |
|Normal Voltage||3.7 V||Between 3.6V ~3.9V before shipping|
|Discharge cut-off Voltage||2.750 V|
|Max Charge Protection Voltage||4.23 V|
|Standard discharge current||0.2C|
|Max discharge current||1.0C|
|Standard charge current||0.2C||Charge method: CC-CV|
(constant current and contant voltage )
|Max Charge current||1.0C|
|Diemnsion||8*13*50mm||Single cell dimension|
|Multiple Protection functions|
Over Charge, Over Discharge,Over Voltage, Short Circuit, Over Current

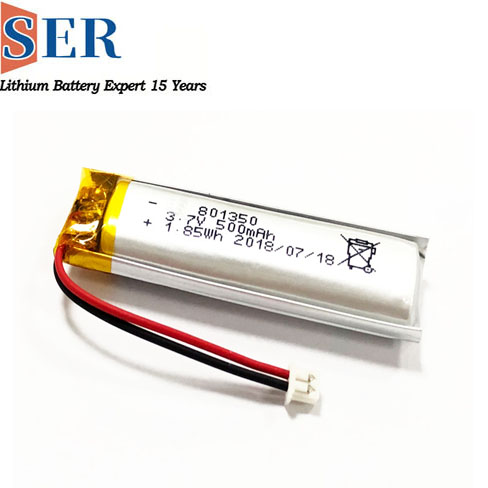

Customize cryogenic battery low temperature Lithium Polymer Battery 3.7V 7.4V 150mAh Lipo battery LP801350 Lithium Li polymer battery pack supplier (cryogenic Lithium Battery,cryogenic batteries,low temperature Lithium Polymer Battery,Lipo battery,low temperature Lithium Battery,low temperature Battery,Customize low temperature battery,Lithium Polymer Battery,Polymer Battery 3.7V, 7.4V battery,11.1V battery,LP401050,Li polymer battery pack,battery pack supplier )
|Lithium polymer battery features:|
1. Charging temperature can be in-20 °C with 0.2 C rate.
2. Working temperature range is-40 °C ~ 60 °C;
3. Energy Density 221.3 wh/kg above;
4, Flexible size, according to customer needs, in size and shape design custom;
5, in-55 °C can be a large current, maintain a large capacity;
6, Compared with Traditional Lithium Polymer batteries, the temperature limit of-20 °C ~ 60 °C was broken.
7, Excellent low temperature cycle performance, 350 cycles after capacity to maintain more than 90% ;
8, Low temperature discharge performance is high, discharge efficiency is above 81% at-50 °C at 0.5°C, discharge capacity is up to 90% AT-40 °C,
|Custom Best Lithium Polymer Battery:|
Customized battery shapes and specifications is the best to improve space efficiency, to maximize the efficiency of the product's irregular available space, to meet the needs of the product shape to meet consumer needs. By using the special-shaped Lithium battery manufacturer SER special-shaped batteries, you can make your products in the industry competition, products have more obvious advantages than competitors.
Some special requirement is also easy to custom, such as each cell no exceed 2.75 Wh for special airline useage.
Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.
All we do what we want to help you to start your good idea.
Mount Molex/JST connector
Short circuit protection board
Custom wire length change the direction (center/side)
Reasonable ± tolerances include room to swell when charging
Lear more application of our Lipo battery:
Customize cryogenic battery low temperature Lithium Polymer Battery are mainly used in weapons, aerospace, navigation equipment for aviation vehicles, scientific research in the Arctic Circle, rescue in sub cold regions, power communication, information security management, medical equipment, railways, ships and service robots, etc
Digital products,Watch Recorder,Paintball Gun,smart mobile phone,electronic products; Miner's lamp,digital products. Portable electric ,Music box; Hair dryer,robot vacumm cleaner,wireless video doorbells; Modality equipment: Digital camera, DV, mobile DVD; Smart manhole covers, stage lights, power tools, smart locks, air purifier, hand warmers, Bluetooth speakers, lamps, massagers, Electronic Toothbrush,USB-C Power Dock,Health Tracking Headband, Super-mini Solar Speaker and so on.
