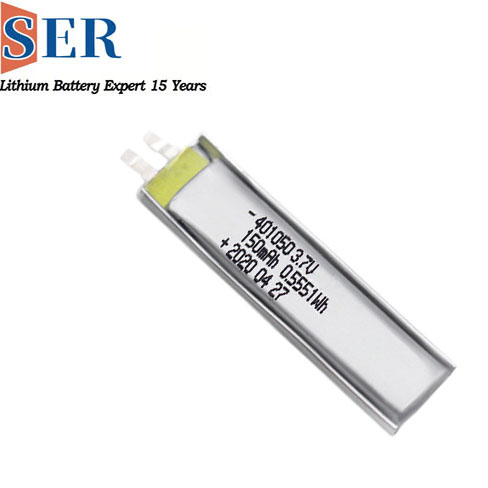

Customize low temperature Lithium Polymer Battery 3.7V 7.4V 11.1V 150mAh Lipo battery LP401050 Lithium Li polymer battery pack supplier

Safety Customize low temperature Lithium Polymer Battery 3.7V 7.4V 11.1V 150mAh Lipo battery LP401050 Lithium Li polymer battery pack supplier

  • Model NO.:low temperature Lithium Polymer Battery LP401050
  • Voltage:3.7V
  • Capacity:150mAh
  • Shape:flat, square, flexiable
  • Battery Size:4*10*50mm
  • Brand:SER or OEM
  • Working temperature:-40℃--55℃
  • Applications:Tracker,Smart manhole covers, stage lights, power tools, smart locks, air purifier, hand warmers, Bluetooth speakers, lamps, massagers, Electronic Toothbrush,USB-C Power Dock,Health Tracking Headband, Super-mini Solar Speaker and so on.

lipo banner.jpg




Technical Specification:


Item
Specification

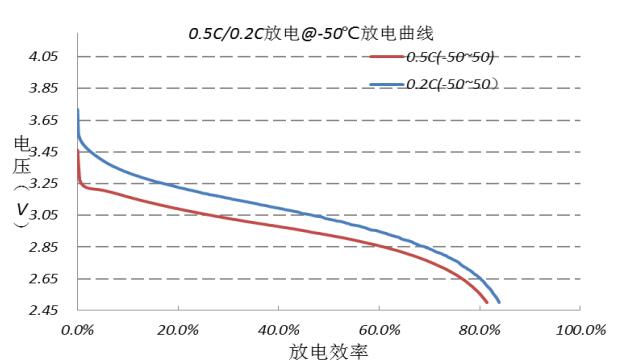

Best low temperature discharge performance:

the lowest at-50 °C at 0.5 °C discharge, the efficiency of more than 81% ,-40 °C at 0.5 °C discharge, discharge capacity of 90%

Capacity
Typical150mAhMeasured at 0.2C discharge with 2.75V cut-off voltage, after standard charging
Minium
145mAh
Normal Voltage3.7 VBetween 3.6V ~3.9V before shipping
Discharge cut-off Voltage
2.750 V
Max Charge Protection Voltage
4.23 V
Standard discharge current
0.2C
Max discharge current
1.0C
Standard charge current
0.2CCharge method: CC-CV

(constant current and contant voltage )

Max Charge current1.0C
Diemnsion4*10*50mmSingle cell dimension
Multiple Protection functions

Over Charge, Over Discharge,Over Voltage, Short Circuit, Over Current

High light

Customize low temperature Lithium Polymer Battery 3.7V 7.4V 11.1V 150mAh Lipo battery LP401050 Lithium Li polymer battery pack supplier (low temperature Lithium Polymer Battery,Lipo battery,low temperature Lithium Battery,low temperature Battery,Customize low temperature battery,Lithium Polymer Battery,Polymer Battery 3.7V, 7.4V battery,11.1V battery,LP401050,Li polymer battery pack,battery pack supplier )


Lithium polymer battery features:



1. Charging temperature can be in-20 °C with 0.2 C rate.

2. Working temperature range is-40 °C ~ 60 °C;

3. Energy Density 221.3 wh/kg above;

4, Flexible size, according to customer needs, in size and shape design custom;

5,  in-55 °C can be a large current, maintain a large capacity;

6, Compared with Traditional Lithium Polymer batteries, the temperature limit of-20 °C ~ 60 °C was broken.

7, Excellent low temperature cycle performance, 350 cycles after capacity to maintain more than 90% ;

8, Low temperature discharge performance is high, discharge efficiency is above 81% at-50 °C at 0.5°C, discharge capacity is up to 90% AT-40 °C,



Custom Best Lithium Polymer Battery:


Customized battery shapes and specifications is the best to improve space efficiency, to maximize the efficiency of the product's irregular available space, to meet the needs of the product shape to meet consumer needs.  By using the special-shaped Lithium battery manufacturer SER special-shaped batteries, you can make your products in the industry competition, products have more obvious advantages than competitors.

Some special requirement is also easy to custom, such as each cell no exceed 2.75 Wh for special airline useage.


Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.


All we do what we want to help you to start your good idea.

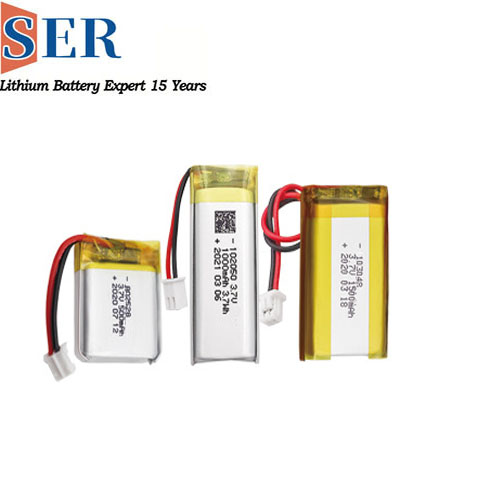

LP602530 customized 602530 3.7v 900mAh Rechargeable Lithium Polymer Battery li-ion 7.4V battery pack for medical device(图3)

Connector

Mount Molex/JST connector

LITHIUM POLYMER BATTERY.jpg

LP602530 customized 602530 3.7v 900mAh Rechargeable Lithium Polymer Battery li-ion 7.4V battery pack for medical device(图5)

PCM

Short circuit protection board

LP602530 customized 602530 3.7v 900mAh Rechargeable Lithium Polymer Battery li-ion 7.4V battery pack for medical device(图6)

NTC

103AT 10K 1%@ +25C B3380

LP602530 customized 602530 3.7v 900mAh Rechargeable Lithium Polymer Battery li-ion 7.4V battery pack for medical device(图7)

Cable Wires

Custom wire length change the direction (center/side)

LP602530 customized 602530 3.7v 900mAh Rechargeable Lithium Polymer Battery li-ion 7.4V battery pack for medical device(图8)

Accurate Size

Reasonable ± tolerances include room to swell when charging

LP602530 customized 602530 3.7v 900mAh Rechargeable Lithium Polymer Battery li-ion 7.4V battery pack for medical device(图9)

Custom Services

Dimension/Capacity/Shape



Applications:


Lear more application of our Lipo battery:

Digital products,Watch Recorder,Paintball Gun,smart mobile phone,electronic products; Miner's lamp,digital products. Portable electric ,Music box; Hair dryer,robot vacumm cleaner,wireless video doorbells; Modality equipment: Digital camera, DV, mobile DVD; Smart manhole covers, stage lights, power tools, smart locks, air purifier, hand warmers, Bluetooth speakers, lamps, massagers, Electronic Toothbrush,USB-C Power Dock,Health Tracking Headband, Super-mini Solar Speaker and so on.

Lipo battery applications.jpg


Production process:

Production Process.jpg
