CR14250 CR1/2AA Size 3.0V LiMnO2 Battery Primary Lithium Battery
CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery
CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery
Detailed Product Description
| Battery Type: | 1/2AA Size | Voltage: | 3.0V |
|---|---|---|---|
| Capacity: | 1,050mAh | Chemical System: | LiMnO2 |
| Size: | Ø14.5*25mm | Shelf Life: | 10 Years |
| Application1: | Electronic meter | Application2: | Detectors |
| Application3: | Portable Communication Equipment | Application4: | Didital camera |
| Shape: | Cyclindrical | ||
| High Light: | CR14250 CR1/2AA size 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery | ||
CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery
Technical specifications:
| Battery Technology | Lithium Manganese battery/ LiMNO2 |
| Battery structure | High capacity type |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 1050mAh |
| Open circuit voltage | 3.1V (at +20°C) |
| Cut off Voltage | 2.0V |
| Max. Constant Current | 15mA |
| Max. Pulse Current | 100mA |
| Operating Temperature | -40°C~+85°C |
| Storage Life | ≥10 years |
| Self – Discharge Rate: | <1% per year |
| External Diameter (Max) | 14.5mm |
| External Height (Max) | 25mm |
| Weights | 10g |
Features
1.High continuous discharge current and current pulses.
2.High energy density, 260Wh/Kg.
3.Open circuit voltage above 3.2V for single cell.
4.Wide range of operating temperature(-40°C~+85°C).
5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Application
The battery have wide applications:
Utility water/ Gas Meter, smart locks, Automatic Meter Reading;
Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;
Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;
Scientific Instruments, Portable Communication Equipment, Military Radio Stations;
and other electric powered devices requiring small size, high power batteries.
Packaging & Shipping
Packing:
Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.
Shipping:
Leadtime is 3-20 working days for normal orders.
Pictures:

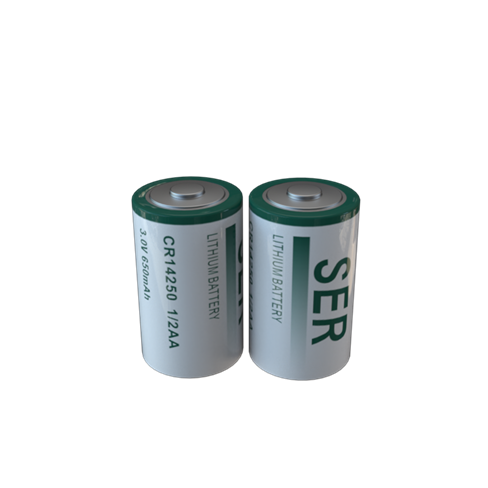

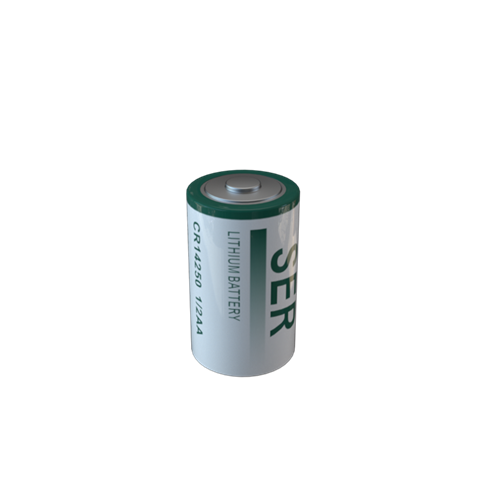

CR14250 CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery
We can add the Pin, wire and connector on the battery according to requirement
