EF651615 is a 3.6V/400mAh Non-rechargeable lithium thionyl chloride ( LISOCL2)Prismatic Battery with 4 U solder pins terminalsEF651615 Customize 3.6V lithium thionyl chloride ( LISOCL2) Prismatic primary battery LTC-3PN with pins terminals
| Battery Description: |

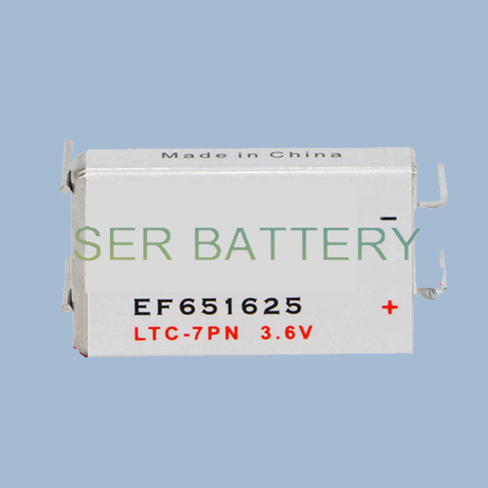

Battery Model: | EF651625 / LTC-7PN / BL-7PN | Battery Brand: | SER or OEM | |
Battery Capacity: | 750mAh ( at 0.5mA,under 25℃, 2.0V cut-off) | Dimension: | 25.8 x 16.85 x 14.6mm | |
Open Circuit Voltage: | ≥3.6V | Load Voltage: | ≥3.2V | |
Max continuous discharge current | 10mA ( to get 50% of capacity with 25℃, 2.0V cut-off) | Max Discharge current | 30mA(1s pulse to 3.0V) | |
Working temperature: | -55~+85℃ | Storage Life: | 10 years | |
Storage condition: | clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated | |||
| Applications: | Water counters, gas meters,electronic meters,CMOS memory backup,utility meters,Emergency backup,automatic meter reading,tracking systems,earthquake detectors,Smoke detectors | |||
High light: | EF651625 Customize 3.6V Li-SOCL2 Prismatic primary battery LTC-3PN with pins terminals 3.6V Non-rechargeable lithium thionyl chloride ( LISOCL2)Prismatic Battery with 4 U solder pins terminals | |||
Compatibility:
LTC-7PN, BL-7PN,EF651625

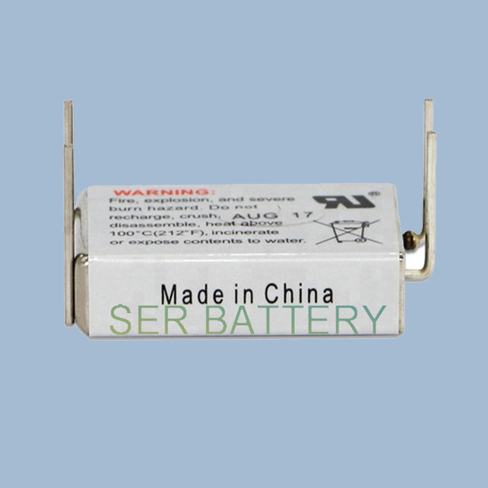

Soldering pin interval +/- pin 7.6 mm, -/- pin 10.2 mm
| Main Features: |
1. High and stable working voltage
The standard voltage is 3.6V and the working voltage maintains an obvious stability during the entire service life; more than 90% of the battery capacity is output on a high-voltage platform with almost constant voltage;
2. Wide temperature range
Can be used at temperatures between -55°C and 85°C.
3. High energy density
The specific energy of lithium-thionyl chloride battery is as high as 700Wh/kgL.
4. Better storage life and reliability
With particularly low self-discharge characteristics, the annual self-discharge rate is less than 1%, and the shelf life of the battery has been confirmed to be stored for more than 10 years at room temperature.
5. Hermetic glass-to-metal sealing
The manufacturing process of stainless steel shell and metal-glass hermetic welded structure.
6. good security, safety
Does not contain mercury, cadmium, lead and other heavy metals, Non-flammable electrolyte, no environmental hazards.
Warning:
Do not recharge, short circuit, crush, disassemble, heat above +125℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
| Applications: |
Main Applications:
a. Mainly used in the civil field: AMR and CMOS circuit boards for public instruments
b. Various smart meters; smart electricity meters, water meters, heat meters, gas meters
c . Memory and backup power supply: memory backup, clock power supply, data backup power supply
d . Radio alarms/sensors: smoke alarms, temperature monitors
e . remote monitoring system: positioning device, marine telemetry system
f . Automotive electronics: automotive tire pressure monitoring system (TPMS), braking system
g. Industrial field: microcomputer control system, tax control machine, automated instrumentation and equipment, oil wells, mines, medical equipment, burglar alarms, wireless communications, marine lifesaving, etc.
h . Modern military fields: aviation, aerospace, marine electronics, amphibious weapons, etc.
