High power LiSOCL2 battery ER18505+UPC1520 super capacitor large pulse for NB-iot smart water meter wireless module battery

Large pulse current Li-socl2 Battery ER18505H Plus EPC1520 Capacitor ER18505+UPC1520 Capacitor EPC1520 SLC1520

Recommended battery model parameters:

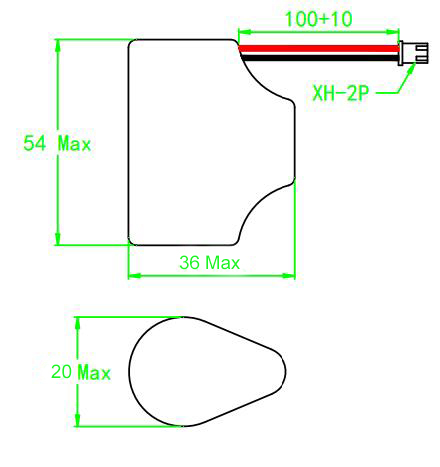

Battery model: ER18505+UPC1520 battery

Battery brand: SER

Battery performance index

1. Battery capacity: (23±2℃, 5.0mA/2.0V) 4000mAh

2. Open circuit voltage: ≥3.64V

3. Load voltage: (8Ω, 20±5℃, time ≤10s) ≥3.20V

4. Continuous working currents: (20±5℃) 200mA

5. Large pulse working current: (20±5℃) 1A

6. Operating temperature range: -55~+85℃

7. Battery storage life: 10 years

 Stable high working voltage

 Low self-discharge rate

 Long storage life

 Stainless steel housing and electrode cap (low magnetic characteristics)

 Wide operating temperature range

Working principle of ER18505+RHC1520 / upc1520 /hpc1520 composite power supply

(1) The battery is assembled in parallel with the RHC/UPC/EPC/HPC/SLC composite capacitor. The battery is a LiSOCL2 battery energy type with higher safety;

(2) The high pulse discharge is completed by the RHC/UPC/EPC/HPC/SLC composite capacitor, and the capacitor has no voltage hysteresis and no passivation effect;

(3) All high-pulse discharges are completed by the RHC/UPC/EPC/HPC /SLCcomposite capacitor. Before the next pulse comes, the capacitor is fully charged again. After the capacitor is fully charged, the discharge capacity remains unchanged until the battery capacity is exhausted, which can ensure the discharge capacity of the battery pack;
