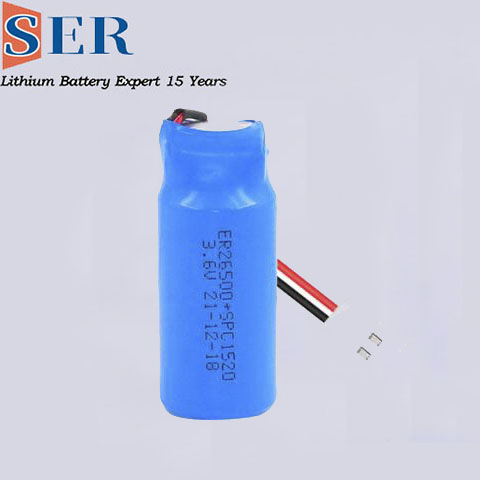

3.6V Er26500 SPC1520 8500mAh Super Capacitor Li/Socl2 Primary Lithium Non-Rechargeable Battery for IOT meter
3.6v lithium battery ER26500 with 1520 pulse capacitor ER26500+HPC1520 custom lithium battery pack for internet of things and Gps tracker
3.6v lithium battery ER26500 with 1520 pulse capacitor ER26500+HPC1520 custom lithium battery pack for internet of things and Gps tracker
3.6V Er26500 SPC1520 8500mAh Super Capacitor Li/Socl2 Primary Lithium Non-Rechargeable Battery
Product Overview
The Super pulse battery capacitor (SPC) is an energy storage device with the latest and cutting-edge technologies. With SPC, We offer a power solution for lifespan, with high pulse current drain and passivation sensitive application. Designed for use in parallel connection wieh the LiSOCL2 battery, the supper capacitor series delivers high pulse discharge current in a variety of applications. The solution is a combination of lithium thionyl chloride( LiSOCL2 battery) batteries + HPC 1520 HPC1530 HPC1550
Key Advantages
High and stable voltage 3.6 V (optional 3.9 V)
High pulse current capability
No passivation
Long operating life
Light-weight
Wide operating temperature range(-40℃~+85℃)
Very low self-discharge (less than 2 % per year)
Outstanding storage capability
High safe reliability (hermetic laser sealing.
3.6V ER26500+SPC1520 Battery Specification:
ModelER26500 with SPC1520
Internal Resistance≤200mΩ
TypeEnergy Type/Bobbin Type
ChemistryLithium thionyl chloride(LiSOCl2)
Nominal Capacity8500mAh
Cut-off Voltage2.5V
Max Continuous Discharge Current 500mA
Max Pulse Discharge Current2A
Operating temperature -40°C~+85°C
Self Discharge~1% / year
Shelf Life10 years
Main Applications:
Utility Meters (AMR)
Asset, Container & Cargo Tracking
RFID Devices
Sonar Buoys
Communication Equipment
Emergency & Medical Devices
Intner Of Things -IOT product
Gps tracker
Smart Lock
PLEASE NOTE: These batteries are LITHIUM PRIMARY batteries, which are NOT rechargeable. Do not attempt to charge these cells, as any attempt to do so may cause severe damage to both the battery and the charger.
The following are the ER26500 battery and SPC1520 Specifications
Chemistry: Lithium Thionyl Chloride ER26500 Battery
Nominal Capacity : 8.5Ah
Nominal Voltage : 3.6V
Max.continuous current : 150mA
Max.Pulse Capability : 300mA
Storage(recommended) : Max.30℃
Operating Temperature Range :﹣60℃～+85℃
Weight Approx. : 55g
**************************************************************************************************************************************************
SPC1520 1/2AA Super Pulse Capacitor Lithium Ion Battery
The Super pulse battery capacitor (SPC) is an energy storage device with the latest and cutting-edge technologies.
Specifications:
* Nominal Voltage: 3.60V
* Max. charge voltage: 3.95V
* Max. continuous discharging current: 500 mA
* Max. pulse discharging current: 2000 mA
* Operating temperature range: -40 °C ~ 85 °C
* Storage temperature: -30 °C ~ 60 °C
* Standard charging current: 20mA
