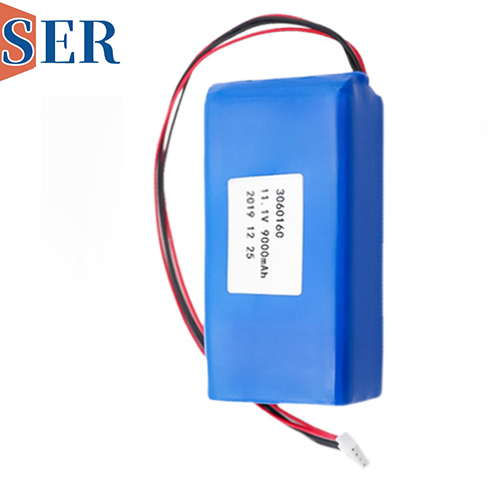

customize 11.1V 9000mAh 3S1P Rechargeable Lithium Polymer Battery Pack with NTCfor Emergency Power Supplies, Sprayers, and Photography Equipment

Custom 11.1V 9000mAh 3S1P Rechargeable Lithium Polymer Battery Pack: Powering Versatility Across Emergency, Agricultural and Photography Applications

Introduction

In a world where reliable power is the backbone of countless professional and everyday operations, the demand for customized battery solutions has never been more pronounced. From emergency response scenarios that require instant, uninterrupted energy to agricultural spraying tasks demanding long-lasting runtime and professional photography sessions relying on stable power delivery, the need for a battery pack that balances performance, durability, and versatility is undeniable.

Enter the custom 11.1V 9000mAh 3S1P rechargeable lithium polymer (LiPo battery pack) battery pack—engineered specifically to meet the unique power requirements of emergency power supplies, sprayers, and photography equipment. This battery pack combines a precision 3-series 1-parallel (3S1P) configuration, a high-capacity 9000mAh cell arrangement, and the inherent advantages of lithium polymer technology to deliver a power solution that excels across diverse use cases.

This article provides a comprehensive exploration of the custom 11.1V 9000mAh 3S1P LiPo battery pack, covering its technical design, performance characteristics, application-specific optimizations, safety features, manufacturing process, quality control standards, and market value. By delving into the nuances of how this battery pack is tailored to emergency, agricultural, and photography needs, we aim to offer engineers, product designers, procurement professionals, and end-users a detailed understanding of its capabilities and why it stands out as a premier custom power solution.

1. Technical Fundamentals: Design and Configuration of the 3S1P Battery Pack

1.1 Core Electrical Specifications

At the heart of the custom 11.1V 9000mAh 3S1P battery pack lies a set of electrical parameters calibrated to deliver consistent, reliable performance across its target applications. The nominal voltage of 11.1V is derived directly from its 3S1P configuration—three lithium polymer cells connected in series (3S) to boost voltage, with one parallel string (1P) to maintain capacity. Each individual LiPo cell has a nominal voltage of 3.7V, a standard for consumer and industrial lithium-based batteries; when connected in series, 3.7V × 3 = 11.1V, a voltage level perfectly suited for powering mid-to-high-power devices without the need for additional voltage conversion.

The 9000mAh capacity is a key differentiator, offering substantial energy storage to support extended operation. Unlike low-capacity battery packs that require frequent recharging, the 9000mAh design ensures that devices such as emergency power supplies can provide backup energy for critical tools, sprayers can cover large agricultural areas without interruption, and photography equipment can run through full-day shoots without power depletion. The capacity is achieved through the use of high-energy-density LiPo cells, each contributing approximately 3000mAh (since 3 cells in series retain individual capacity, with parallel connections multiplying it—here, 1P means capacity remains consistent with single-cell rating, so 3×3000mAh cells in series deliver 9000mAh total).

1.2 3S1P Configuration: Balancing Voltage and Capacity

The 3S1P configuration is a deliberate choice for this custom battery pack, as it strikes an optimal balance between voltage output and capacity retention. Let’s break down the configuration’s technical advantages:

• Series Connection (3S): Connecting three cells in series increases the total voltage while keeping the capacity per string consistent. For applications like photography lights or sprayer motors, which require higher voltage to drive efficient operation, the 11.1V output eliminates the inefficiency of low-voltage packs that rely on voltage boosters. This direct voltage match reduces energy loss and ensures devices operate at their peak performance.

• Parallel Connection (1P): Using a single parallel string simplifies the battery pack’s design while maintaining the 9000mAh capacity. Unlike multi-parallel configurations (e.g., 3S2P), which increase capacity but add complexity, cost, and weight, the 1P design keeps the pack compact and lightweight—critical for portable devices like handheld sprayers or photography gear that users carry for extended periods.

The 3S1P configuration also offers enhanced stability compared to higher-series setups (e.g., 4S or 5S). With fewer cells in series, the risk of voltage imbalance between cells is minimized, extending the battery pack’s cycle life and reducing maintenance needs. This reliability is particularly important for emergency power supplies, where failure is not an option.

1.3 Lithium Polymer (LiPo) Technology: Why It’s the Ideal Choice

The battery pack leverages lithium polymer technology, a variant of lithium-ion (Li-ion) batteries that offers distinct advantages for custom, application-specific power solutions. Unlike traditional cylindrical Li-ion batteries (e.g., 18650 cells), LiPo batteries use a flexible, thin-film construction with a polymer electrolyte (solid or gel-like) instead of a liquid electrolyte. This design enables several key benefits tailored to the pack’s target applications:

• Flexible Form Factor: LiPo cells can be manufactured in custom shapes and sizes, allowing the 11.1V 9000mAh 3S1P pack to be integrated seamlessly into the housing of emergency power supplies, sprayers, and photography equipment. Whether the device requires a slim, flat battery or a compact, irregular shape, LiPo technology accommodates customization without sacrificing performance.

• High Energy Density: LiPo batteries offer one of the highest energy densities among rechargeable battery chemistries (typically 150–200 Wh/kg), meaning the 9000mAh capacity is packed into a lightweight, space-efficient form. For portable devices like handheld sprayers or on-location photography gear, this translates to less fatigue for users and more room for other components (e.g., sensors in emergency supplies or motors in sprayers).

• Low Self-Discharge Rate: LiPo batteries have a self-discharge rate of approximately 2–3% per month, significantly lower than nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) batteries. This is critical for emergency power supplies, which may sit idle for months between uses—users can trust that the battery will retain its charge when needed most.

• Fast Charging Capability: LiPo batteries support faster charging than many other chemistries, with the custom 11.1V 9000mAh pack capable of accepting a 1C charge rate (9000mA). This means the pack can be fully recharged in approximately 1–2 hours (depending on the charger), minimizing downtime for professional users who rely on their equipment daily.

2. Performance Characteristics: Reliability, Runtime, and Durability

2.1 Cycle Life and Longevity

Cycle life—the number of charge-discharge cycles a battery can undergo before its capacity drops to 80% of its original value—is a critical performance metric for rechargeable battery packs. The custom 11.1V 9000mAh 3S1P LiPo pack is designed to deliver a cycle life of 300–500 cycles, a benchmark for high-quality LiPo batteries. This longevity is achieved through several design optimizations:

• High-Quality Cells: The pack uses grade A LiPo cells with consistent capacity and voltage characteristics, reducing the risk of cell imbalance and premature degradation.

• Balanced Charging: The integrated Battery Management System (BMS)—discussed in detail in Section 4—ensures each cell is charged to the same voltage (4.2V per cell, the maximum safe charge voltage for LiPo batteries), preventing overcharging of individual cells and extending overall cycle life.

• Conservative Discharge Rate: The pack is rated for a continuous discharge rate of 1C (9000mA), which aligns with the power demands of its target applications (e.g., sprayer motors typically draw 5–8A, photography lights 2–5A). This conservative discharge profile minimizes stress on the cells, further extending their lifespan.

For end-users, a 300–500 cycle life translates to years of reliable use. For example, a professional photographer who charges the pack once per week would use approximately 52 cycles per year, meaning the pack could last 5–9 years. A farmer using a sprayer twice per week would get 4–7 years of service. This longevity reduces replacement costs and environmental impact, making the pack a sustainable choice.

2.2 Runtime Across Applications

The 9000mAh capacity is tailored to deliver application-specific runtime that meets the needs of professional users. Let’s break down expected runtime for each target use case:

• Emergency Power Supplies: Emergency backup devices (e.g., portable power banks for medical equipment, LED emergency lights, or communication tools) typically draw low to moderate currents. A 9000mAh pack can power a 10W LED emergency light (drawing ~0.9A at 11.1V) for approximately 10 hours, a small medical ventilator (drawing ~2A) for 4.5 hours, or a smartphone (charging at 1A) for 9 full charges. This runtime ensures critical devices remain operational during power outages or emergency response scenarios.

• Sprayers: Agricultural and industrial sprayers (handheld, backpack, or small wheeled models) use motors that draw 5–8A. A 9000mAh pack can power a sprayer drawing 6A for 1.5 hours—enough to cover 1–2 acres of farmland (depending on the sprayer’s flow rate) on a single charge. For professional farmers, this means fewer interruptions to refill or recharge, increasing productivity.

• Photography Equipment: Photography gear such as LED panel lights, camera monitors, or external power grips typically draw 2–5A. A 9000mAh pack can power a 30W LED panel light (drawing ~2.7A) for 3.3 hours, a camera monitor (drawing 1A) for 9 hours, or a DSLR camera (drawing 0.5A) for 18 hours. This runtime supports full-day shoots without the need for multiple battery swaps, a key advantage for on-location photographers.

2.3 Operating Temperature Range

The custom 11.1V 9000mAh 3S1P pack is engineered to operate within a wide temperature range, making it suitable for use in diverse environments—from hot agricultural fields to cold emergency response sites. The pack’s operating temperature range is -10°C to 60°C (-14°F to 140°F), with optimal performance between 0°C and 45°C.

• Low-Temperature Performance: At temperatures between -10°C and 0°C, the pack’s capacity may decrease by 10–20%, but it will still deliver sufficient power for critical applications (e.g., emergency lights in cold weather or photography in winter conditions). The LiPo chemistry’s flexibility prevents damage from freezing, unlike liquid-electrolyte batteries that can crack in low temperatures.

• High-Temperature Performance: At temperatures between 45°C and 60°C, the pack’s cycle life may be slightly reduced, but built-in thermal protection (discussed in Section 4) prevents overheating and damage. This makes the pack suitable for use in hot agricultural fields (where sprayers are often used in 30–40°C heat) or outdoor photography shoots in sunny conditions.

2.4 Discharge Rate and Power Output

The pack’s continuous discharge rate of 1C (9000mA) is sufficient for the power demands of its target applications, while its peak discharge rate of 2C (18,000mA) provides a buffer for momentary high-power draws (e.g., a sprayer motor starting up or a photography light switching to high brightness). This balance of continuous and peak discharge capability ensures the pack can handle both steady-state and transient power needs without voltage sag or performance degradation.

Voltage sag—the drop in voltage during high-current discharge—is minimized by the pack’s low internal resistance (typically <100mΩ). Low internal resistance ensures that the 11.1V nominal voltage remains stable even under load, preventing devices from shutting down prematurely or operating at reduced efficiency. For example, a sprayer motor will run at full speed throughout the discharge cycle, and a photography light will maintain consistent brightness without dimming.

3. Application-Specific Customizations: Tailoring to Emergency, Agricultural, and Photography Needs

One of the key strengths of the custom 11.1V 9000mAh 3S1P LiPo battery pack is its ability to adapt to the unique requirements of each target application. Below, we explore how the pack is customized to meet the specific needs of emergency power supplies, sprayers, and photography equipment.

3.1 Customizations for Emergency Power Supplies

Emergency power supplies demand three critical attributes: reliability, compactness, and compatibility with a wide range of devices. The custom battery pack addresses these needs through the following optimizations:

• Compact, Lightweight Design: Emergency power supplies are often portable (e.g., handheld or backpack-mounted), so the pack is engineered to be slim and lightweight (typically 400–500g, depending on casing). The LiPo technology’s flexible form factor allows the pack to fit into tight spaces within emergency devices, leaving room for other components like USB ports, AC outlets, or LED indicators.

• Wide Compatibility: The pack’s 11.1V output is compatible with most emergency devices, and it can be paired with a built-in DC-DC converter to provide 5V (for USB devices), 12V (for small motors), or 220V AC (for household appliances) as needed. Custom connector options (e.g., USB-C, DC barrel jack, or Anderson Powerpole) ensure compatibility with medical equipment, communication tools, and lighting.

• Long Shelf Life: Emergency power supplies may sit idle for months or years, so the pack’s low self-discharge rate (2–3% per month) is critical. Additionally, the pack is designed to retain 80% of its capacity after 12 months of storage, ensuring it is ready to use when emergencies strike.

• Rugged Casing: Emergency response scenarios can be harsh, so the pack’s casing is made of impact-resistant ABS plastic or aluminum alloy to protect against drops, bumps, and moisture. The casing is also IP65-rated for water and dust resistance, making it suitable for outdoor emergency use.

3.2 Customizations for Sprayers

Sprayers (agricultural, industrial, or residential) require a battery pack that can withstand vibration, moisture, and long hours of continuous use. The custom pack is tailored to these needs with the following features:

• Vibration Resistance: Sprayers generate significant vibration during operation, which can damage battery cells and connections over time. The pack’s cells are secured with shock-absorbing foam, and all connections are reinforced with heat-shrink tubing and strain relief to prevent loosening. This vibration resistance ensures the pack remains reliable even after hundreds of hours of use in rough agricultural conditions.

• Moisture and Chemical Resistance: Sprayers are often used in wet environments (e.g., morning dew, rain) or with chemical pesticides/herbicides. The pack’s casing is sealed with a waterproof gasket and coated with a chemical-resistant finish to protect against moisture ingress and corrosion. The IP67-rated design allows the pack to withstand temporary submersion in water, a critical feature for outdoor use.

• High-Drain Performance: Sprayer motors draw higher currents (5–8A) than many other portable devices, so the pack is optimized for continuous high-drain operation. The use of high-quality LiPo cells with low internal resistance ensures stable voltage output even under heavy load, preventing the motor from slowing down or stopping mid-operation.

• Easy Integration: The pack’s dimensions are customized to fit the battery compartment of common sprayer models (handheld, backpack, or wheeled). Quick-connect terminals (e.g., XT60 or Deans connectors) allow for easy installation and removal, so users can swap out packs quickly without tools.

3.3 Customizations for Photography Equipment

Professional photography equipment requires a battery pack that is lightweight, compact, and capable of delivering stable power for sensitive electronics. The custom pack meets these needs with the following application-specific features:

• Ultra-Compact Design: Photography gear (e.g., LED panel lights, camera monitors, external grips) is often carried in bags or mounted on cameras, so the pack is designed to be as slim and lightweight as possible (typically 350–450g). The LiPo cells are arranged in a flat, low-profile configuration to fit into the slim housings of photography accessories.

• Stable Power Delivery: Sensitive photography electronics (e.g., camera sensors, monitors) require consistent voltage to avoid noise or damage. The pack’s low internal resistance and integrated BMS ensure stable voltage output with minimal ripple, protecting delicate equipment and ensuring high-quality images/videos.

• Hot-Swap Capability: For long shoots, photographers need to swap batteries without shutting down their equipment. The pack is designed with hot-swap compatibility, allowing users to replace the pack while the device is running (where supported by the device). This feature eliminates downtime and ensures shoots continue uninterrupted.

• Custom Battery Indicators: Many photography devices include battery level indicators, so the pack can be integrated with a 4-LED voltage indicator that shows remaining capacity (25%, 50%, 75%, 100%). This allows photographers to monitor power levels at a glance, avoiding unexpected shutdowns during critical shots.

4. Safety Features: Protecting Users and Equipment

Safety is a non-negotiable priority for any battery pack, especially those used in critical applications like emergency response, agriculture, and professional photography. The custom 11.1V 9000mAh 3S1P LiPo pack is equipped with a comprehensive suite of safety features to prevent accidents and protect both users and equipment.

4.1 Battery Management System (BMS)

At the core of the pack’s safety system is a high-performance Battery Management System (BMS)—a dedicated circuit that monitors and regulates the battery’s operation. The BMS provides the following key protections:

• Overcharge Protection: LiPo batteries can be damaged or catch fire if overcharged (voltage exceeding 4.2V per cell). The BMS monitors the voltage of each cell and cuts off the charging current when the maximum safe voltage is reached. This prevents cell swelling, overheating, and thermal runaway.

• Overdischarge Protection: Overdischarging (voltage dropping below 3.0V per cell) can permanently damage LiPo cells, reducing their capacity and cycle life. The BMS cuts off the discharge current when the cell voltage falls below the safe threshold, protecting the pack from irreversible damage.

• Short Circuit Protection: A short circuit (direct connection between positive and negative terminals) can generate excessive current and heat, leading to battery failure or fire. The BMS detects short circuits within milliseconds and cuts off the current, preventing damage to the pack and connected devices.

• Cell Balancing: Over time, cells in a series configuration can become unbalanced (different voltages), reducing the pack’s capacity and cycle life. The BMS automatically balances the voltage of each cell during charging, ensuring all cells reach the same voltage level and maintaining the pack’s performance.

4.2 Thermal Protection

Lithium polymer batteries are sensitive to high temperatures, which can degrade performance and pose safety risks. The custom pack includes two layers of thermal protection:

• Positive Temperature Coefficient (PTC) Resistor: A PTC resistor is integrated into the pack to limit current flow when temperatures exceed a safe threshold (typically 80–90°C). As temperatures rise, the PTC resistor’s resistance increases, reducing current and preventing overheating.

• Thermal Fuse: A secondary thermal fuse is included as a fail-safe. If the PTC resistor fails or temperatures continue to rise, the thermal fuse melts, cutting off the circuit entirely. This prevents the pack from catching fire or exploding in extreme conditions.

4.3 Mechanical and Environmental Protection

The pack’s physical design also contributes to its safety:

• Impact-Resistant Casing: As mentioned earlier, the pack’s casing is made of rugged ABS plastic or aluminum alloy, designed to withstand drops from heights of up to 1.5 meters. This protects the cells and BMS from physical damage that could cause short circuits or leaks.

• Moisture and Dust Resistance: The IP65 or IP67 rating (depending on application) ensures the pack is protected against water and dust ingress. This is critical for outdoor applications like sprayers and emergency response, where exposure to moisture is common.

• Leak-Proof Design: LiPo batteries use a solid or gel-like electrolyte that is less prone to leakage than liquid-electrolyte batteries. The pack’s sealed casing and laminated cell construction further prevent leakage, ensuring the electrolyte does not escape and damage connected devices or harm users.

4.4 Compliance with Safety Standards

The custom 11.1V 9000mAh 3S1P pack complies with international safety standards to ensure reliability and user confidence. Key certifications include:

• UN38.3: A global standard for the transportation of lithium batteries, ensuring the pack is safe for air, sea, and land transport.

• IEC 62133: A standard for secondary lithium batteries used in portable applications, covering electrical, mechanical, and thermal safety.

• UL 1642: A safety standard for lithium batteries, specifying requirements for cell construction, overcharge protection, and short circuit resistance.

• CE: Compliance with European Union safety, health, and environmental standards, allowing the pack to be sold and used in the EU.

These certifications demonstrate that the pack has undergone rigorous testing to meet the highest safety standards, making it suitable for use in professional and consumer applications worldwide.

5. Manufacturing Process: Ensuring Quality and Consistency

The production of the custom 11.1V 9000mAh 3S1P LiPo battery pack requires precision, strict quality control, and adherence to industry best practices. Below is a detailed overview of the manufacturing process, from raw material sourcing to final assembly and testing.

5.1 Raw Material Sourcing

The quality of the battery pack begins with the selection of high-grade raw materials. Key components and their sourcing standards include:

• LiPo Cells: Only grade A LiPo cells from reputable suppliers (e.g., Samsung, LG, or Panasonic) are used. These cells undergo rigorous testing to ensure consistent capacity, voltage, and internal resistance. Cells with any defects (e.g., voltage imbalance, physical damage) are rejected.

• BMS Components: The BMS is built using high-quality electronic components (e.g., microcontrollers, MOSFETs, resistors) from trusted manufacturers. These components are selected for their reliability and ability to withstand the pack’s operating conditions.

• Casing Materials: The casing is made of food-grade ABS plastic (for cost-sensitive applications) or lightweight aluminum alloy (for high-performance, rugged applications). Both materials are sourced from suppliers with ISO 9001 certification to ensure consistency and quality.

• Connectors and Wiring: High-current connectors (e.g., XT60, Deans, or USB-C) and high-temperature wiring (16–18 AWG) are used to ensure reliable power transfer. Connectors are rated for at least 10A to handle the pack’s discharge current.

•

5.2 Cell Preparation and Testing

Before assembly, individual LiPo cells undergo a series of tests to ensure they meet the pack’s specifications:

• Capacity Testing: Each cell is charged to full capacity (4.2V) and discharged at a 0.5C rate to measure its actual capacity. Cells that fall below 3000mAh (for a 3-cell 9000mAh pack) are rejected.

• Voltage Testing: Cells are measured for open-circuit voltage (OCV) to ensure consistency. Cells with an OCV outside the range of 3.65–3.75V are rejected, as they indicate potential defects.

• Internal Resistance Testing: A high-precision multimeter is used to measure each cell’s internal resistance. Cells with resistance exceeding 50mΩ are rejected, as they can cause voltage sag and reduce the pack’s performance.

• Physical Inspection: Cells are visually inspected for physical defects (e.g., swelling, dents, or leakage). Any damaged cells are discarded.

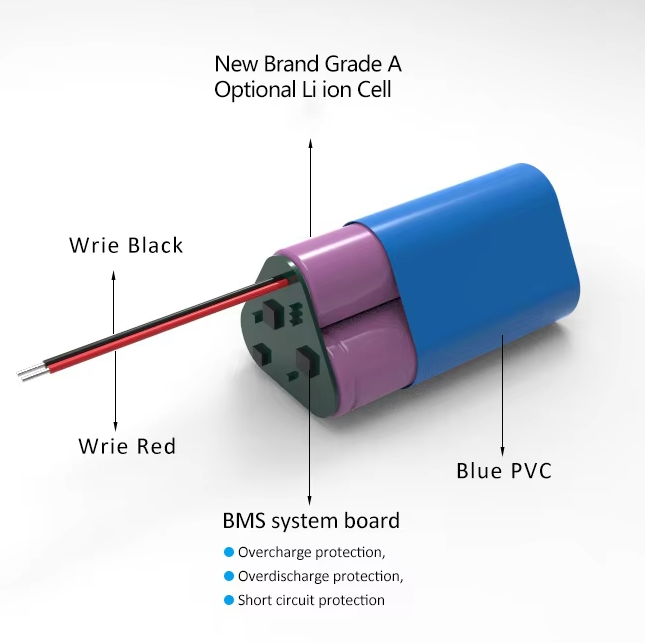

5.3 Cell Assembly (3S1P Configuration)

Once cells are approved, they are assembled into the 3S1P configuration:

• Cell Grouping: Cells are grouped into three series-connected strings (one string for 3S1P). The positive terminal of one cell is connected to the negative terminal of the next using nickel strips (0.1–0.2mm thick) for low resistance.

• Spot Welding: Nickel strips are attached to cell terminals using a precision spot welder. This process ensures a strong, low-resistance connection that can handle the pack’s discharge current. Welds are inspected visually and with a pull test to ensure they are secure.

• Insulation: After welding, the connections are covered with heat-shrink tubing to prevent short circuits. The entire cell assembly is wrapped in insulation tape to protect against moisture and physical damage.

5.4 BMS Integration

The BMS is integrated into the cell assembly to provide safety and monitoring functions:

• Wiring: The BMS is connected to the cell assembly using high-temperature wiring. The BMS’s positive and negative leads are connected to the pack’s main terminals, and balance wires are connected to each cell’s positive terminal to enable cell balancing.

• Securing the BMS: The BMS is mounted to the cell assembly using double-sided tape or screws. A layer of shock-absorbing foam is placed between the BMS and cells to protect the BMS from vibration and impact.

5.5 Casing and Final Assembly

The cell-BMS assembly is then placed into the custom casing:

• Casing Preparation: The casing is cleaned and inspected for defects. For waterproof designs, a waterproof gasket is installed in the casing’s lid.

• Insertion and Securing: The cell-BMS assembly is inserted into the casing, and foam padding is added around the assembly to prevent movement during operation. The casing is then sealed with screws or adhesive, depending on the design.

• Connector Installation: The pack’s external connector (e.g., XT60, USB-C) is installed into the casing’s pre-drilled hole. Wiring is secured with strain relief to prevent the connector from pulling loose.

5.6 Final Testing and Quality Control

Every battery pack undergoes a comprehensive final test to ensure it meets all specifications:

• Electrical Testing: The pack is charged to full capacity and discharged at a 1C rate to measure total capacity. Voltage, current, and internal resistance are monitored throughout the cycle. Packs that fall below 9000mAh or have abnormal voltage behavior are rejected.

• Safety Testing: The pack is subjected to overcharge, overdischarge, and short circuit tests to verify the BMS’s functionality. The pack is also heated to 80°C to test thermal protection. Any pack that fails these tests is discarded.

• Environmental Testing: For rugged applications (e.g., sprayers, emergency supplies), the pack is subjected to vibration testing (per IEC 60068-2-6) and water/dust testing (per IP65/IP67 standards).

• Visual Inspection: The pack is inspected for physical defects (e.g., cracks in the casing, loose connectors, or missing labels). Packs with any defects are rejected or reworked.

5.7 Packaging and Labeling

Approved packs are labeled with key information, including:

• Nominal voltage (11.1V)

• Capacity (9000mAh)

• Configuration (3S1P)

• Charging voltage (12.6V)

• Discharge current (1C = 9000mA)

• Safety certifications (UN38.3, IEC 62133, etc.)

• Manufacturer information and serial number

Packs are then packaged in anti-static bags and cardboard boxes to protect against damage during transportation. Each box includes a user manual with charging instructions, safety warnings, and warranty information.

6. Quality Control and Quality Assurance

To ensure consistency and reliability, the manufacturing process is governed by a strict Quality Management System (QMS) certified to ISO 9001:2015. Key quality control and assurance measures include:

6.1 In-Process Quality Control (IPQC)

IPQC inspectors monitor each stage of the manufacturing process to identify and correct defects early. Key checkpoints include:

• Raw material inspection (incoming quality control, IQC)

• Cell testing and grouping

• Spot welding quality

• BMS wiring and integration

• Casing assembly

Inspectors use checklists and statistical process control (SPC) to track defect rates and identify trends. Any process deviations are documented and corrected immediately.

6.2 Final Quality Control (FQC)

As discussed in Section 5.6, every pack undergoes a final test before leaving the factory. FQC inspectors verify that all electrical, safety, and physical specifications are met. Packs that pass all tests are labeled as “approved” and prepared for shipment.

6.3 Batch Testing

In addition to individual pack testing, random samples from each production batch are subjected to additional tests to ensure batch consistency:

• Cycle life testing (100 cycles to verify capacity retention)

• High-temperature storage testing (stored at 60°C for 30 days to test stability)

• Drop testing (dropped from 1.5 meters onto concrete to test durability)

Batch test results are documented and retained for quality traceability. If any batch fails testing, the entire batch is quarantined and reworked or discarded.

6.4 Quality Traceability

Each battery pack is assigned a unique serial number that tracks it throughout the manufacturing process. This serial number is linked to raw material batches, test results, and manufacturing dates, allowing for full traceability in the event of a quality issue. Customers can use the serial number to request warranty service or quality documentation.

7. Market Value and Competitive Advantages

The custom 11.1V 9000mAh 3S1P LiPo battery pack stands out in the market due to its unique combination of performance, customization, and safety. Below are its key competitive advantages and market value propositions.

7.1 Competitive Advantages

• Application-Specific Customization: Unlike generic battery packs that offer a one-size-fits-all solution, this pack is tailored to the unique needs of emergency power supplies, sprayers, and photography equipment. Customizations like vibration resistance (for sprayers), compact design (for photography gear), and long shelf life (for emergency supplies) make it a better fit than generic packs.

• High Capacity and Long Runtime: The 9000mAh capacity delivers longer runtime than most competing packs in its class (which typically offer 5000–7000mAh). This reduces downtime for users and increases productivity.

• Reliable Performance: The 3S1P configuration, high-quality LiPo cells, and integrated BMS ensure stable voltage output, long cycle life, and protection against common battery failures. This reliability is critical for professional users who cannot afford equipment downtime.

• Safety and Compliance: The pack’s comprehensive safety features and compliance with international standards give users confidence in its performance. Unlike low-quality, uncertified packs that pose safety risks, this pack is designed to meet the highest safety standards.

• Cost-Effectiveness: While the pack is a premium product, its long cycle life (300–500 cycles) and low maintenance needs make it cost-effective over time. Users save money on replacement packs and avoid the costs associated with battery failures (e.g., damaged equipment, lost productivity).

7.2 Market Value Propositions

• For Emergency Power Supply Manufacturers: The pack’s compact design, long shelf life, and wide compatibility make it an ideal power solution for portable emergency devices. It enables manufacturers to create products that are reliable, easy to use, and suitable for a range of emergency scenarios.

• For Sprayer Manufacturers: The pack’s vibration resistance, moisture protection, and high-drain performance make it a durable, reliable power source for agricultural and industrial sprayers. It helps manufacturers differentiate their products by offering longer runtime and better durability than competing sprayers.

• For Photography Equipment Manufacturers: The pack’s compact, lightweight design and stable power delivery make it perfect for portable photography gear. It enables manufacturers to create accessories (e.g., LED lights, monitors) that are easy to carry and deliver consistent performance—key selling points for professional photographers.

• For End-Users: Whether a farmer, photographer, or emergency responder, end-users benefit from the pack’s long runtime, reliability, and safety. It eliminates the frustration of frequent recharging, equipment failures, and safety risks associated with low-quality batteries.

8. Conclusion

The custom 11.1V 9000mAh 3S1P rechargeable lithium polymer battery pack represents the pinnacle of application-specific power solutions, designed to meet the unique demands of emergency power supplies, sprayers, and photography equipment. Its precision 3S1P configuration, high-capacity 9000mAh design, and lithium polymer technology deliver a balance of performance, durability, and versatility that generic battery packs cannot match.

From its technical fundamentals—including a stable 11.1V output, 9000mAh capacity, and 3S1P configuration—to its application-specific customizations (e.g., vibration resistance for sprayers, compact design for photography gear, and long shelf life for emergency supplies), every aspect of the pack is engineered to excel. Its comprehensive safety features, compliance with international standards, and rigorous manufacturing process ensure reliability and user confidence, while its long cycle life and cost-effectiveness make it a sustainable choice for both manufacturers and end-users.

As the demand for reliable, customized power solutions continues to grow across industries, the custom 11.1V 9000mAh 3S1P LiPo battery pack is well-positioned to become the preferred choice for emergency, agricultural, and photography applications. It proves that with the right design, materials, and manufacturing processes, a battery pack can do more than just provide power—it can enhance the performance, durability, and safety of the devices it powers, enabling users to work more efficiently, confidently, and effectively.

For manufacturers seeking a power solution that differentiates their products, and for end-users demanding the best performance and reliability, the custom 11.1V 9000mAh 3S1P rechargeable lithium polymer battery pack is the ultimate choice. It is not just a battery pack—it is a trusted partner in powering the tools that keep the world running.
