In the realm of energy storage solutions, lithium-based batteries have emerged as the cornerstone of portable electronics, electric vehicles, and various other applications requiring high energy density and long shelf life. Among these, Lithium-Thionyl Chloride (Li/SOCl₂) batteries occupy a unique niche, renowned for their exceptional performance characteristics that make them ideal for a range of demanding applications. This article delves into the intricacies of Li/SOCl₂ batteries, exploring their strengths, weaknesses, and the innovative strategies employed to mitigate their limitations, particularly the groundbreaking ER battery+SPC combination by SER Battery Company.

Introduction to Lithium-Thionyl Chloride (Li/SOCl₂) Batteries

Lithium-Thionyl Chloride batteries are primary batteries, meaning they are not rechargeable. They consist of a lithium metal anode, a thionyl chloride (SOCl₂) electrolyte that doubles as the cathode active material, and a porous carbon, glass fiber, or ceramic separator. This unique configuration endows Li/SOCl₂ batteries with several advantages that have made them indispensable in various industries.

Advantages of Li/SOCl₂ Batteries

1. High Energy Density:
   One of the most remarkable features of Li/SOCl₂ batteries is their exceptionally high energy density. Since SOCl₂ serves both as the electrolyte and the cathode active material, these batteries can achieve specific energies as high as 420Wh/Kg, with peak values reaching 650Wh/Kg under low discharge rates. This characteristic makes them ideal for applications where weight and space are critical factors, such as military equipment, remote sensors, and space exploration.

2. High Voltage:
   With an open-circuit voltage of 3.65V, Li/SOCl₂ batteries maintain a stable voltage of approximately 3.3V during discharge at 1mA/cm², ensuring a consistent power output across a wide range of capacities. This high and stable voltage simplifies circuit design and enhances the efficiency of the end-use devices.

3. High Power Capability:
   These batteries can deliver high power, supporting discharge current densities up to 10mA/cm² or even higher. This capability makes them suitable for applications requiring short bursts of high current, such as emergency beacons, radio transmitters, and security systems.

4. Flat Discharge Curve:
   During moderate discharge rates, Li/SOCl₂ batteries exhibit a nearly flat discharge curve, ensuring precise voltage control and minimizing the need for complex voltage regulation circuitry.

5. Wide Operating Temperature Range:
   Li/SOCl₂ batteries operate effectively in temperatures ranging from -40°C to 50°C, with some models capable of functioning in extreme conditions from -50°C to 150°C. This wide temperature tolerance is crucial for applications exposed to harsh environments, such as aerospace, oil and gas exploration, and Arctic research.

6. Long Shelf Life:
   With proper storage conditions, Li/SOCl₂ batteries can retain their charge for up to five years or longer, making them ideal for devices that require infrequent use or long-term deployment.

7. Sealed Design:
   The sealed construction of Li/SOCl₂ batteries protects them from environmental contaminants and minimizes the risk of electrolyte leakage, enhancing their reliability and safety.

8. Pressureless Initially:
   Unlike some other lithium-based batteries, Li/SOCl₂ batteries do not generate internal pressure until near the end of their discharge cycle, simplifying packaging and handling requirements.

Challenges and Limitations of Li/SOCl₂ Batteries

Despite their numerous advantages, Li/SOCl₂ batteries are not without their limitations. These challenges have motivated researchers and manufacturers to develop innovative solutions to enhance their performance and address safety concerns.

1. Voltage Hysteresis:
   After prolonged storage at ambient or elevated temperatures, Li/SOCl₂ batteries may exhibit voltage hysteresis upon initial discharge at high current rates. This phenomenon, characterized by a sudden drop in voltage followed by a gradual recovery, can affect the reliability of the battery in critical applications.

2. Safety Concerns:
   While Li/SOCl₂ batteries are generally considered safe, under certain conditions, such as overdischarge or prolonged storage in the discharged state, they can generate uncontrollable heat and potentially explode. These safety risks necessitate careful handling and storage protocols.

Innovations to Address Li/SOCl₂ Battery Limitations

To mitigate the limitations of Li/SOCl₂ batteries and further enhance their performance, SER Battery Company has developed the innovative ER battery+SPC combination, a game-changer in the field of high-performance primary batteries.

ER Battery+SPC Combination: A Revolutionary Solution

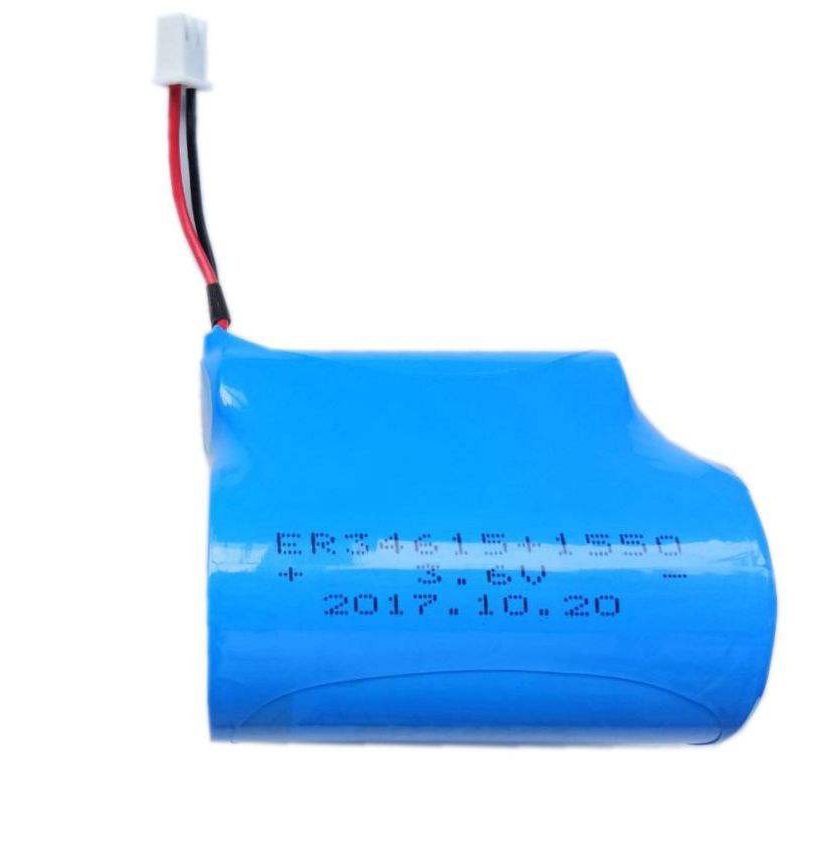

The ER battery+SPC combination, such as the ER26500H+SPC1520，ER34615+SPC1550,ER14250+HPC1520,ER18505+SPC1520,ER26500+EPC1520,ER34615+SPC1520 and others, addresses the key challenges faced by traditional Li/SOCl₂ batteries while maintaining their inherent advantages.

1. Elimination of Voltage Hysteresis:
   The SPC (Special Protection Circuit) integrated into the ER battery+SPC combination effectively eliminates voltage hysteresis, ensuring a stable and predictable voltage output across all discharge conditions. This feature is crucial for applications requiring precise voltage control and high reliability.

2. Enhanced Safety:
   The SPC also acts as a safety mechanism, preventing overdischarge and mitigating the risks associated with heat generation and potential explosions. This enhanced safety feature allows for safer storage and handling of the batteries, reducing the need for stringent safety protocols.

3. Low Self-Discharge:
   The ER battery+SPC combination boasts exceptionally low self-discharge rates, with annual self-discharge rates of ≤2% at room temperature. This characteristic ensures that the batteries retain their charge for extended periods, even under storage conditions, minimizing the need for frequent replacements.

4. Extended Operating Temperature Range:
   The ER battery+SPC combination operates reliably in a wider temperature range, from -45°C to +85°C, expanding its applicability to even more extreme environments. This extended operating range makes the batteries suitable for a broader range of applications, including those in the Arctic, Antarctic, and other harsh climates.

5. High Pulse Current Capability:
   The ER battery+SPC combination supports high pulse current discharges, making it ideal for applications requiring intermittent high power demands, such as wireless sensors, tracking devices, and emergency beacons.

Applications of ER Battery+SPC Combination

The innovative ER battery+SPC combination has found widespread applications in various industries, where its unique combination of high energy density, long shelf life, and enhanced safety features are highly valued.

1. Tracking and Localization:
   The ER battery+SPC combination is a popular choice for tracking and localization devices, such as GPS trackers, RFID tags, and Bluetooth beacons. Its long shelf life and high pulse current capability ensure reliable performance even in remote or difficult-to-access locations.

2. Smart City Infrastructure:
   In smart city applications, such as smart trash cans, smart fire hydrants, and smart meters, the ER battery+SPC combination provides the necessary power to support long-term operation with minimal maintenance. Its wide operating temperature range ensures reliable performance even in extreme weather conditions.

3. Military and Defense:
   Li/SOCl₂ batteries, particularly those equipped with the ER battery+SPC combination, are widely used in military and defense applications due to their high energy density, long shelf life, and ability to operate in harsh environments. They are ideal for powering remote sensors, communication devices, and other critical equipment.

4. Oil and Gas Exploration:
   In the oil and gas industry, Li/SOCl₂ batteries are used to power downhole tools, seismic sensors, and other equipment operating in remote and challenging environments. The ER battery+SPC combination enhances the safety and reliability of these applications, ensuring continuous operation and accurate data transmission.

5. Space and Aerospace:
   The exceptional performance characteristics of Li/SOCl₂ batteries, particularly when combined with the ER battery+SPC solution, make them an attractive choice for space and aerospace applications. Their high energy density, wide operating temperature range, and long shelf life are crucial for missions requiring reliable and long-lasting power sources.

Conclusion

Lithium-Thionyl Chloride (Li/SOCl₂) batteries have established themselves as a reliable and high-performance energy storage solution for a wide range of applications. While they are not without their limitations, innovative solutions such as the ER battery+SPC combination by SER Battery Company have effectively addressed these challenges, enhancing the safety, reliability, and performance of these batteries. As technology continues to evolve, it is likely that Li/SOCl₂ batteries will play an increasingly important role in powering the next generation of portable electronics, remote sensors, and other devices requiring high energy density and long-term reliability.
