CP552439 primary flexible thin film battery 3.0v flat Li/Mno2 batteries ultra thin cell paper batteries factory

Ultra thin battery catalogue(图1)

Ultra thin Batteries				Excellent safety performance
				● Once a safety hazard occurs, the liquid battery is easy to explode, while the polymer battery will only blow up at best.
				Thin thickness
Advantages				● The thickness can be less than 0.4mm, which meets the needs of current wearable devices.
				Light weight
				● The weight of polymer battery is 40% lighter than steel shell lithium battery of the same capacity and 20% lighter than aluminum shell battery.
				Large capacity
				Small internal resistance
				The shape can be customized
				Excellent discharge and charge characteristics

TECHNICAL SPECIFICATIONS

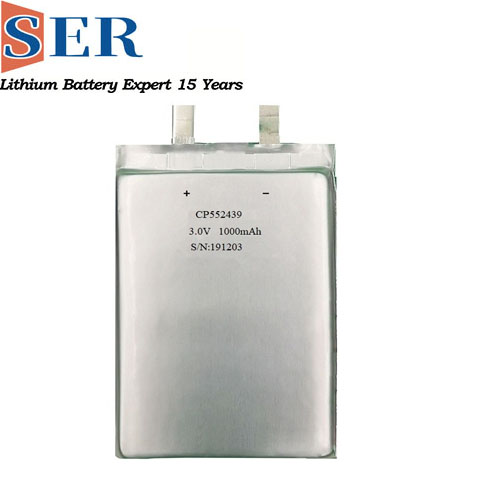

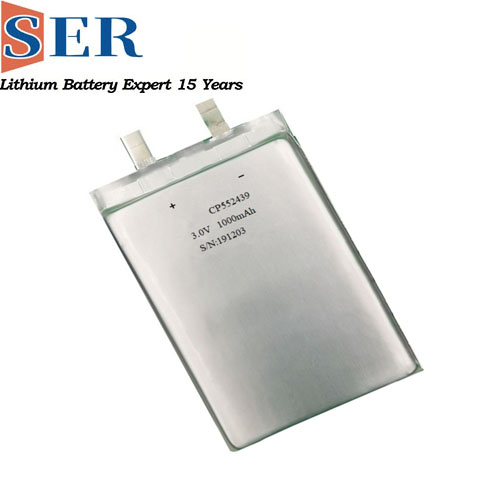

Battery model: Flexible thin film battery CP552439 CP552439 (6).png

Battery brand: SER

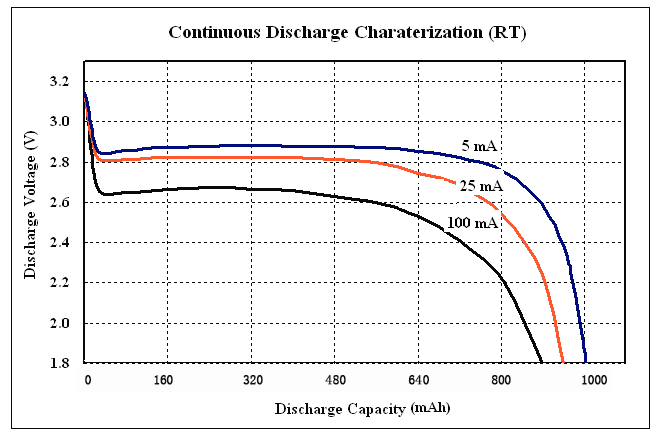

Battery performance index

1. Battery capacity: (23±2℃, 10 mA/2.0V) 1000mAh

2. Open circuit voltage: ≥3.0V

3. Cut-off voltage: 2.0V

4. Max Continuous working currents: 200mA

5. Max pulse working current: 500mA

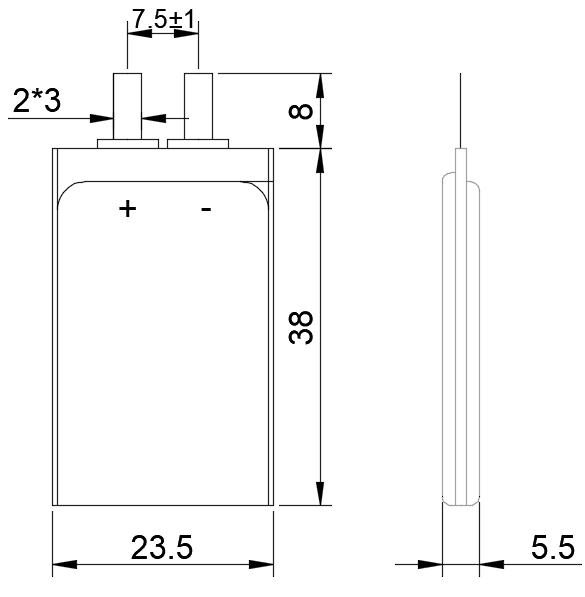

6. Max dimension: 5.5*24*39mm

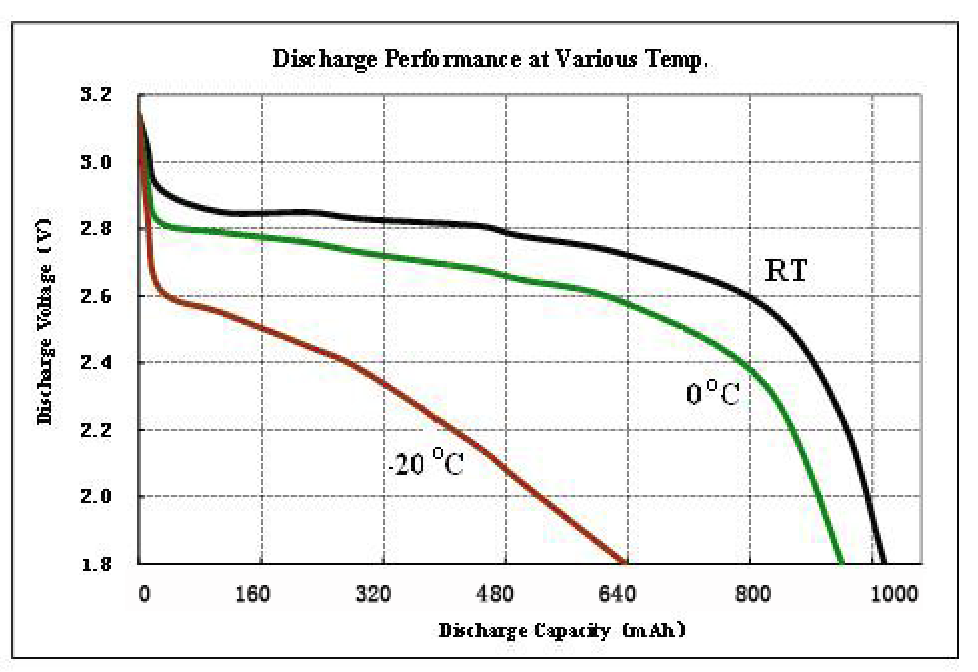

7. Operating temperature range: -20~+60℃

8. Battery storage life: 5 years (Storange: clean, below +20℃, dry and ventilated.）

CP552439 (7).png

CP552439 (8).png

Warning:

Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.

Tag: CP552439,3.0v flat Li/Mno2 batteries,flat Li/Mno2 batteries,Li/Mno2 batteries, primary flexible thin film battery,flexible battery, thin film battery, primary flexible battery,primary thin film battery,Ultra thin cell, thin batteries,safety batteries,Primary Lithium Battery,Lithium Battery,Li-Mno2 battery

APPLICATIONS

Ultra thin battery catalogue(图4)

Main applications:

1. Nonstop charging system; 2. Intelligent parking lot ;

3. Container identification; 4. Vehicle charge check;

5. Mine personnel identification; 6. Automated railcar identification management;

7. Automated road charge management; 8. Automated voyage passengers luggage identification transport management;

9. Vehicle entry and exit control; 10.Compus all-purpose card;

11.Repasting card and public transportation card; 12.Associator card, drive license card, and health(medical equipment)card;

13.Animal identification(raising cattle, sheep, pigeon,etc); 14.Automate management of logistic and storage;

15.Automobile remote control lock; 16.Intellectualized door etc.

PRODUCTION PROCESS

Production Process.jpg

Company Advantage



With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month.	Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company.	Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service.


Efficient and innovative R & D team helps the company lead in product design and superior performance	While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities.	For many years, the professional SER team has focused on the lithium battery industry, and has taken every product as a work of art with firmness, steadiness and excellence.

Product Advantage
1. Full range of battery categories 17 years of development, SER have the ability to offer many product categories:Lisocl2 Battery, LiMNO2 battery, LiPO battery and LiFePO4 batteries.	2. Safety The perfect protection IC has been used, undervoltage, short-circuit, overload, backflow,and we have carried out strict inspections and external tests, make sure no quality problems in the hands of customer.	3. Excellent and stable performance Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC,ROHS and ISO9001: 2000 certified.

4. OEM & ODM Ability Professional engineers have rich experien ce in OEM& ODM. The independent labs have many sophisticated machines and design softwares always guarantee our OEM &ODM projects always keep in high level.	5. Technology Our dedicated and experienced engineers team always work together to our customers from their product design to battery solution and mass production,Reduce their time cost and communication cost.	6. Delievry Fast delivery with standard package,will bring you a professional experience with long-term cooperative freight company and stable routes.
