High Temperature Type ER14505 3.6V AA size primary Li-SOCl2 Battery

High Temperature Type ER14505 3.6V AA size primary Li-SOCl2 Battery MWD LISOCL2 primary battery for downhole oil and gas

  • Model NO.:ER14505
  • Voltage:3.6V
  • Capacity:1600mAh
  • Shape:Cylindrical
  • Battery Size:AA
  • Brand:SER or OEM
  • Working temperature:-40~+165℃
  • Applications:MWD/LWD TOOLS,CONTAINER TRACKING/MEDICAL DEVICE/TMPS SENSOR ETC

High Temperature Type ER14505 3.6V AA size primary Li-SOCl2 Battery

High Temperature Type,Li-SOCl2 Battery ,primary Li-SOCl2 Battery,AA size,AA battery,ER14505,High Temperature AA size

Li-SOCL2 Batteries  Catalogue(图1)



High temperature Battery ER14505S Features:

Recommended battery model parameters:2586122_20231023093625052240_1.jpg

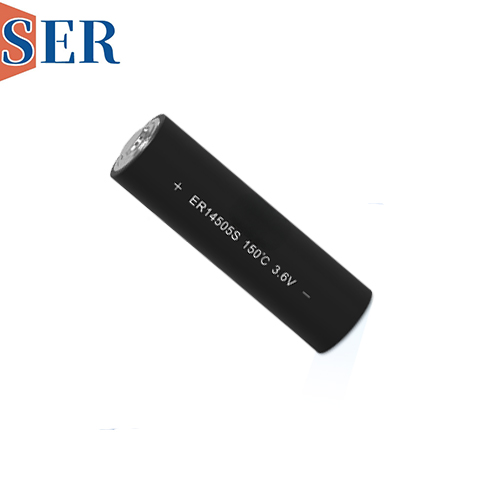

Battery model: ER14505S LiSOCL2 battery-150°C

Battery performance index

1. Battery capacity: (23±2℃, 50mA/2.0V) 1600mAh

2. Open circuit voltage: ≥3.64V

3. Chemical Composition: Li-SOCl2

4. Continuous working currents: 150mA

5. Large pulse working current:  250mA

6. Operating temperature range: -55~+165℃

7. Battery storage life: 10 years

Available Terminations S:Standard Terminations Special Termination are aviable upon request T: Solder Tabs P:Axial Pins

Hi-Temperature - ER Li-SOCl₂ Battery Features

1. Super high temperature performance

Safety valve design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Safety, reliability and performance at high temperatures up to 150 °C.

Our company's unique special production process original high temperature lithium thionyl chloride battery can work in the environment of 165 ℃.

2. Small self-discharge:

The self-discharge rate of the high temperature Battery LiSOCL2 primary battery ER14505S is less than 1% at room temperature, and the storage period can reach 10 years in an environment below 35 °C.

3. High capacity

Stable high operating voltage and high capacitance; High energy density,high stable current.

4. Safety

Safety value design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Battery safety is a very important issue, especially for rechargeable batteries. A battery explosion or fire can cause serious personal injury and property damage. Therefore, battery safety has always been a key issue in the field of battery technology. The battery safety issues mainly include: battery short-circuit, over-discharge, battery mechanical damage and use environment.

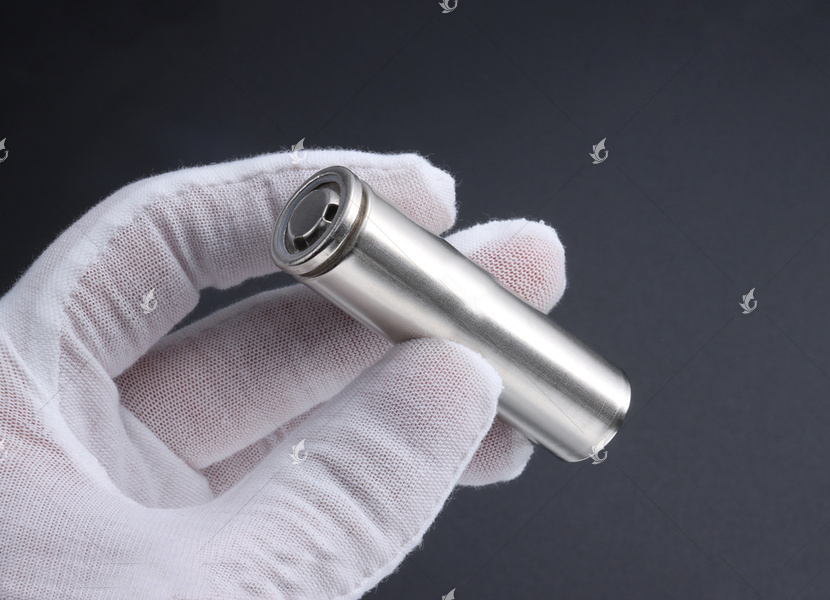

5. All stainless steel outer body, metal glass sealing structure, non-combustible inorganic electrolyte.



Related products:

TypeNominal capacityNominal voltageOperating current mA(max)Standard dischargeCut off voltageDimension (mm)weight
GB
IEC
mAH
V
Continuous
Pulse
Current mA
V
Dia
H
G
1/2AA
600
3.6
100
150
10
2.0
14.5
25.2
10
2/3AA
900
3.6
100
150
50
2.0
14.5
33.2
14
AA
1600
3.6
120
250
20
2.0
14.5
50.5
20
1/2AA
3200
3.6
220
300
100
2.0
18.5
50.5
32
C
5500
3.6
500
1000
4
2.0
26.2
50.5
52
CC
13000
3.6
800
1200
100
2.0
26.2
102.5
102
D
13000
3.6
800
1200
10
2.0
34.5
61.5
100
DD
28000
3.6
1800
2000
100
2.0
34.5
124.5
200
DD
28000
3.6
1800
2000
100
2.0
32.5
127.0
208



Applications


      Applications:

In the oil & gas sector, high temperature lithium thionyl chloride battery is suitable for supplying power to logging and monitoring equipment, for example in combination with a generator.


In the field of medical devices, high temperature lithium thionyl chloride battery is suitable for wireless power supply to devices that are hot sterilized. The battery is autoclavable.


In the area of industrial plants, high temperature lithium thionyl chloride battery is suitable, for example, as an energy back-up system for actuators in safety-critical areas where high temperatures occur in the event of a disaster.


The high temperature lithium thionyl chloride battery is also suitable for the monitoring and control of safety-relevant areas or particularly hazardous areas where high ambient temperatures can occur.
