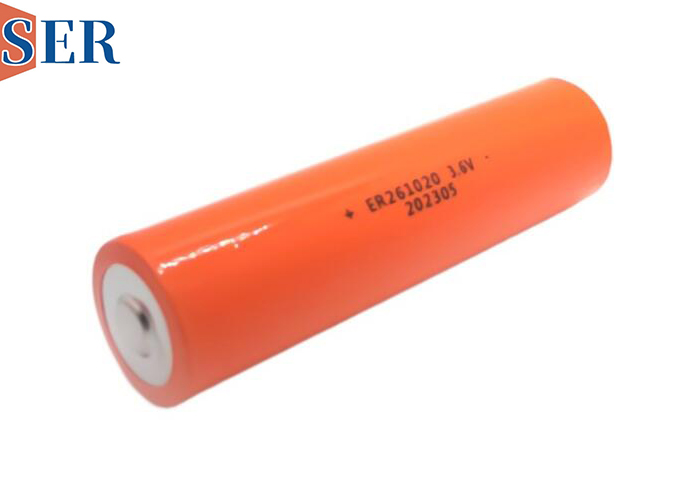

3.6V High temperature CC size LiSOCL2 battery ER261020S
High-Temperature Battery ER261020S: A Comprehensive Guide
Batteries are an essential component in numerous electronic devices, providing the necessary power to operate. Among the various types of batteries available, the high-temperature battery ER261020S stands out due to its unique characteristics and capabilities. This article provides a comprehensive guide to the ER261020S battery, including its specifications, applications, advantages, and more.
Overview of the high temperature ER261020S Battery
The ER261020S is a high-temperature lithium thionyl chloride (Li-SOCl2) battery that offers exceptional performance in extreme conditions. With its robust design and impressive specifications, this battery is suitable for a wide range of applications that require reliable power in harsh environments.
Specifications of the high temperature ER261020S Battery
Let's dive into the detailed specifications of the ER261020S battery:
IEC: CC Size Li-SOCl2 Battery
The ER261020S battery conforms to the IEC (International Electrotechnical Commission) standards for CC size Li-SOCl2 batteries. This ensures that the battery meets the required dimensions, electrical characteristics, and safety standards set by the IEC.
Nominal Voltage: 3.6 Volts
The nominal voltage of the ER261020S battery is 3.6 volts. This voltage is typical for Li-SOCl2 batteries and provides a stable and consistent power output.
Max. Dimension: 26.2×102 mm
The maximum dimensions of the ER261020S battery are 26.2 mm in diameter and 102 mm in length. This compact size allows the battery to be used in a variety of electronic devices with limited space constraints.
Weight: 103.5 g
The weight of the ER261020S battery is 103.5 grams. This lightweight design makes it an ideal choice for applications where weight is a critical factor, such as aerospace and defense systems.
Standard Current: 50 mA
The standard current rating for the ER261020S battery is 50 milliamps (mA). This rating indicates the maximum continuous current that the battery can provide without damaging its internal components or reducing its lifespan.
Continuous Discharge Current: 800 mA
The continuous discharge current rating for the ER261020S battery is 800 mA. This means that the battery can safely provide a continuous current of up to 800 mA without experiencing any significant performance degradation.
Pulse Discharge Current: 1200 mA
The pulse discharge current rating for the ER261020S battery is 1200 mA. This rating indicates the maximum instantaneous current that the battery can provide during short pulses or bursts of power. Pulse discharge capabilities are particularly important for applications that require high power output for short durations, such as sensors and transmitters.
Operating Temperature: -40°C to +230°C
The operating temperature range of the ER261020S battery is -40°C to +230°C. This wide temperature range makes the battery suitable for use in extreme environments, including high-temperature industrial processes and aerospace applications.
Key Features of the high temperature ER261020S Battery
The ER261020S battery offers several key features that make it an excellent choice for various applications:
High-Temperature Resistance
One of the most notable features of the ER261020S battery is its ability to operate in high-temperature environments. With an operating temperature range of up to 230°C, this battery can provide reliable power in conditions that would destroy most other types of batteries.
Long Shelf Life
The ER261020S battery has a long shelf life, which means it can be stored for extended periods without losing its charge or performance. This is particularly important for applications that require periodic use or that may not be used for long periods, such as emergency systems and backup power supplies.
High Energy Density
The ER261020S battery has a high energy density, which means it can store a large amount of energy in a small, lightweight package. This high energy density makes the battery an excellent choice for applications that require a high power-to-weight ratio, such as aerospace and defense systems.
Low Self-Discharge Rate
The self-discharge rate of the ER261020S battery is low, which means it retains its charge over time. This is particularly important for applications that require reliable power over extended periods, such as remote sensors and monitoring systems.
Excellent Vibration Resistance
The ER261020S battery is designed to withstand high levels of vibration and shock. This makes it suitable for use in applications that experience significant mechanical stress, such as aerospace and automotive systems.
Applications of the ER261020S Battery
The ER261020S battery is suitable for a wide range of applications due to its unique characteristics and capabilities. Here are some of the most common applications for this battery:
Aerospace and Defense
The ER261020S battery is often used in aerospace and defense applications due to its high-temperature resistance, high energy density, and excellent vibration resistance. It can provide reliable power for critical systems, such as guidance and navigation systems, communications equipment, and sensors.
Oil and Gas Exploration
The ER261020S battery is ideal for use in oil and gas exploration due to its ability to operate in high-temperature environments. It can provide power for sensors, monitors, and other electronic devices used in drilling and exploration operations.
Industrial Applications
The ER261020S battery is suitable for use in a variety of industrial applications, including high-temperature processes, automation systems, and remote sensors. Its high energy density and long shelf life make it an excellent choice for applications that require reliable power in harsh environments.
Medical Devices
The ER261020S battery can be used in medical devices that require reliable power in extreme conditions. For example, it can provide power for implantable medical devices, such as pacemakers and defibrillators, as well as for external medical equipment used in high-temperature environments.
Consumer Electronics
Although the ER261020S battery is primarily used in industrial and commercial applications, it can also be found in some consumer electronics. For example, it may be used in high-end cameras, drones, and other electronic devices that require reliable power in harsh conditions.
Advantages of the ER261020S Battery
The ER261020S battery offers several advantages over other types of batteries, making it an excellent choice for various applications:
Reliability
The ER261020S battery is known for its reliability and consistency. It can provide stable power output over a wide range of temperatures and conditions, making it suitable for critical applications that require reliable power.
Longevity
The ER261020S battery has a long lifespan and can provide power for extended periods without requiring replacement. This reduces maintenance costs and downtime, making it an economical choice for applications that require continuous power.
High-Temperature Capability
The ability of the ER261020S battery to operate in high-temperature environments is a significant advantage. This makes it suitable for applications that would be incompatible with other types of batteries, such as aerospace and oil and gas exploration.
High Energy Density
The high energy density of the ER261020S battery allows it to provide a large amount of power in a small, lightweight package. This makes it an excellent choice for applications that require a high power-to-weight ratio, such as aerospace and defense systems.
Considerations for Using the ER261020S Battery
While the ER261020S battery offers many advantages, there are also some considerations to take into account when using this battery:
Cost
The ER261020S battery is typically more expensive than other types of batteries due to its specialized design and manufacturing process. However, its long lifespan and reliability can offset the higher initial cost over time.
Safety Precautions
As with any battery, proper handling and disposal are essential to ensure safety. The ER261020S battery contains toxic materials and should be disposed of in accordance with local regulations. Additionally, it should be handled with care to avoid damage or short-circuiting.
Environmental Conditions
While the ER261020S battery can operate in extreme temperatures, it is important to consider the environmental conditions in which it will be used. For example, prolonged exposure to high temperatures or humidity can affect the battery's performance and lifespan.
Maintenance and Storage of the ER261020S Battery
To ensure optimal performance and lifespan, it is important to properly maintain and store the ER261020S battery:
