Abstract
In the ever - evolving landscape of energy storage, lithium - ion batteries have emerged as a dominant force. Among them, the Samsung SDI 50G INR21700 battery stands out for its high performance and versatility. This article delves into the characteristics of the individual Samsung SDI 50G INR21700 cells, explores the design and functionality of custom - made battery packs with voltages of 3.7V, 7.4V, 11.1V, and 14.8V, and examines their applications across various industries. By understanding the technical specifications, safety features, and performance advantages, we can appreciate the significant role these battery packs play in powering modern devices and systems.
1. Introduction
The demand for efficient and reliable energy storage solutions has been on the rise, driven by the proliferation of portable electronics, electric vehicles, and renewable energy systems. Lithium - ion batteries, with their high energy density, long cycle life, and relatively low self - discharge rate, have become the preferred choice for many applications. The Samsung SDI 50G INR21700 battery is a prime example of a high - performance lithium - ion cell that can be configured into custom battery packs to meet specific voltage and capacity requirements.
2. Characteristics of the Samsung SDI 50G INR21700 Battery Cell
2.1 Chemical Composition and Structure
The INR (Lithium - Nickel - Manganese - Cobalt Oxide) chemistry of the Samsung SDI 50G INR21700 battery offers a balanced combination of energy density, power output, and safety. The 21700 form factor, with a diameter of 21mm and a length of 70mm, provides a relatively large volume for active materials, enabling higher capacity and better thermal management compared to smaller cells like the 18650.
2.2 Electrical Specifications
Nominal Voltage: The battery has a nominal voltage of 3.7V, which is a standard value for lithium - ion cells and serves as a reference for calculating the voltage of battery packs.
Capacity: With a capacity of 5000mAh, it can store a significant amount of electrical energy, making it suitable for applications that require long - lasting power, such as portable electronic devices and electric vehicles.
Discharge Rate: The Samsung SDI 50G INR21700 is capable of high - rate discharge, which allows it to deliver a large amount of current in a short period. This feature is crucial for applications that demand high power, like power tools and drones.
2.3 Safety Features
Samsung SDI has incorporated several safety mechanisms into the 50G INR21700 battery to prevent overcharging, over - discharging, and short - circuiting. These include built - in protection circuits that monitor the battery's voltage and current and can cut off the power flow if abnormal conditions are detected. Additionally, the battery's design and materials are selected to minimize the risk of thermal runaway, a dangerous condition that can lead to fires or explosions.
3. Design of Custom Battery Packs
3.1 3.7V Battery Pack
A 3.7V battery pack using the Samsung SDI 50G INR21700 is essentially a single - cell configuration. This simple design is suitable for low - voltage applications where a single cell can provide sufficient power, such as some small portable electronics like Bluetooth earbuds or smartwatches. The main advantage of this pack is its compact size and low cost, as it requires minimal additional components for protection and management.
3.2 7.4V Battery Pack
3.2.1 Configuration
A 7.4V battery pack is created by connecting two Samsung SDI 50G INR21700 cells in series. In a series connection, the voltages of the individual cells add up, while the capacity remains the same as that of a single cell. So, a 2S (two - series) pack has a nominal voltage of 2 x 3.7V = 7.4V and a capacity of 5000mAh.
3.2.2 Applications
This voltage level is commonly used in medium - sized portable devices, such as digital cameras, portable game consoles, and some small electric scooters. The increased voltage compared to a single - cell pack allows these devices to operate more efficiently and power components that require higher voltages.
3.3 11.1V Battery Pack
3.3.1 Configuration
An 11.1V battery pack is formed by connecting three Samsung SDI 50G INR21700 cells in series (3S configuration). With a nominal voltage of 3 x 3.7V = 11.1V and a capacity of 5000mAh, this pack provides a higher voltage suitable for more demanding applications.
3.3.2 Applications
It is widely used in larger portable electronics, such as laptops, portable medical devices, and some industrial handheld tools. The higher voltage enables these devices to run more powerful processors and motors, providing better performance and functionality.
3.4 14.8V Battery Pack
3.4.1 Configuration
A 14.8V battery pack is achieved by connecting four Samsung SDI 50G INR21700 cells in series (4S configuration). It has a nominal voltage of 4 x 3.7V = 14.8V and a capacity of 5000mAh.
3.4.2 Applications
This high - voltage pack is ideal for applications that require a significant amount of power, such as electric bicycles, drones, and some small unmanned aerial vehicles (UAVs). The increased voltage allows for more efficient motor operation, resulting in longer flight times for drones and better acceleration for electric bicycles.
3.5 Parallel Connections for Increased Capacity
In addition to series connections, parallel connections can be used to increase the capacity of the battery packs. For example, a 2S2P (two - series, two - parallel) pack would have a nominal voltage of 7.4V and a capacity of 2 x 5000mAh = 10000mAh. This configuration is useful when longer runtimes are required without increasing the voltage. Parallel connections can be applied to all the voltage levels mentioned above to meet specific application requirements.
4. Battery Management System (BMS) in Custom Packs
4.1 Functions of the BMS

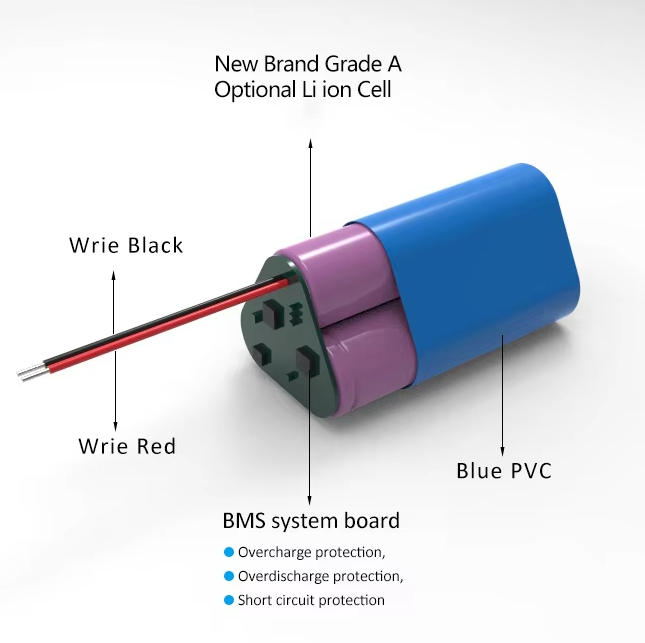

A Battery Management System is an essential component in custom Samsung SDI 50G INR21700 battery packs. Its main functions include:
Voltage Monitoring: The BMS continuously monitors the voltage of each cell in the pack to ensure that they remain within the safe operating range. If any cell's voltage exceeds the upper or lower limit, the BMS can take corrective actions, such as reducing the charging current or disconnecting the load.
Current Monitoring: It measures the current flowing into and out of the battery pack to prevent over - current conditions that could damage the cells or the connected device.
Temperature Monitoring: The BMS monitors the temperature of the battery pack to prevent overheating, which can lead to reduced performance and safety risks. If the temperature rises above a certain threshold, the BMS can activate cooling mechanisms or limit the power output.
Cell Balancing: In series - connected battery packs, cell imbalance can occur due to differences in cell capacity or internal resistance. The BMS uses cell - balancing techniques to ensure that all cells have similar voltages, which helps to extend the overall lifespan of the pack.
4.2 Importance for Different Pack Configurations
The BMS plays a crucial role in all custom battery pack configurations. In series - connected packs, it prevents cell over - voltage or under - voltage, which could lead to cell damage or reduced performance. In parallel - connected packs, it helps to manage the current distribution among the parallel branches, ensuring even current flow and preventing overheating. A well - designed BMS can significantly improve the safety, reliability, and lifespan of custom Samsung SDI 50G INR21700 battery packs.
5. Applications Across Industries
5.1 Consumer Electronics
The compact size and high energy density of the Samsung SDI 50G INR21700 battery packs make them ideal for a wide range of consumer electronics, from smartphones and tablets to smart home devices. The ability to customize the voltage and capacity allows manufacturers to design products with optimal power solutions, ensuring long - lasting performance and portability.
5.2 Electric Vehicles
In the electric vehicle industry, these battery packs are used in electric bicycles, scooters, and even some small electric cars. The high - rate discharge capability of the Samsung SDI 50G INR21700 cells enables quick acceleration, while the customizable voltage and capacity can be tailored to the specific power and range requirements of different vehicle models.
5.3 Renewable Energy Storage
Custom battery packs based on the Samsung SDI 50G INR21700 can also be used for renewable energy storage systems, such as solar - powered home energy storage and off - grid power solutions. They can store the energy generated from solar panels or wind turbines during the day and release it when needed, providing a reliable and sustainable power source.
5.4 Industrial Applications
In industrial settings, these battery packs power various handheld tools, portable medical devices, and unmanned systems. Their high energy density and safety features make them suitable for demanding industrial environments where reliable power is essential for efficient operation.
6. Conclusion
The custom Samsung SDI 50G INR21700 battery packs offer a versatile and high - performance energy storage solution for a wide range of applications. With their individual cell characteristics, customizable voltage and capacity configurations, and the integration of a Battery Management System, these packs provide reliable, safe, and efficient power. As the demand for portable and sustainable energy continues to grow, the Samsung SDI 50G INR21700 battery packs are likely to play an increasingly important role in powering the devices and systems of the future. Further research and development in battery technology, such as improving energy density and reducing costs, will further enhance the competitiveness and applicability of these battery packs in the global market.
