In the competitive landscape of lithium battery technology, mastering core production and performance metrics is critical to selecting the right solution for your application. Whether you are integrating a high-energy LiSOCL2 battery for industrial sensors, a flexible Lipo battery for consumer electronics, a compact ultra thin battery for wearables, or a rugged high temperature battery for harsh environments, parameters like energy density, formation, grading, discharge plateau, and trickle charge directly dictate battery efficiency, reliability, and lifespan. This guide deciphers these key terms, with tailored insights for specialized lithium battery types.

1. Energy Density (Wh/kg & Wh/L)

Energy density is a fundamental performance metric that measures the amount of energy stored in a lithium battery relative to its mass or volume. It is divided into two core categories:

• Gravimetric Energy Density: Expressed in Wh/kg, it refers to the energy per unit mass of the battery.

• Volumetric Energy Density: Expressed in Wh/L, it refers to the energy per unit volume of the battery.

Practical Calculation Example

For a lithium battery with the following specifications:

• Weight: 300g (0.3kg)

• Nominal Voltage: 3.7V

• Rated Capacity: 10Ah

The gravimetric energy density is calculated as follows:

Energy Density (Wh/kg)= (Voltage×Capacity)/Mass  = (3.7 V×10 Ah)/0.3 kg ≈123.3 Wh/kg

Key Industry Insights

• Lithium batteries currently deliver 3x the gravimetric energy density of nickel-cadmium (Ni-Cd) batteries and 1.5x that of nickel-metal hydride (Ni-MH) batteries, making them the top choice for portable and high-energy applications.

• Energy density is determined by the battery’s material system (e.g., cathode/anode chemistry) and structural design. Real-world energy density is lower than theoretical values, as it accounts for the weight and volume of non-active components like casings, protection circuits, and connectors.

Application for Specialized Batteries

• LiSOCL2 battery: Boasts ultra-high volumetric energy density, making it ideal for compact remote sensors that require long-term power without frequent replacement.

• Lipo battery: Offers high gravimetric energy density, enabling lightweight designs for drones, smartphones, and portable gaming devices where weight reduction is a priority.

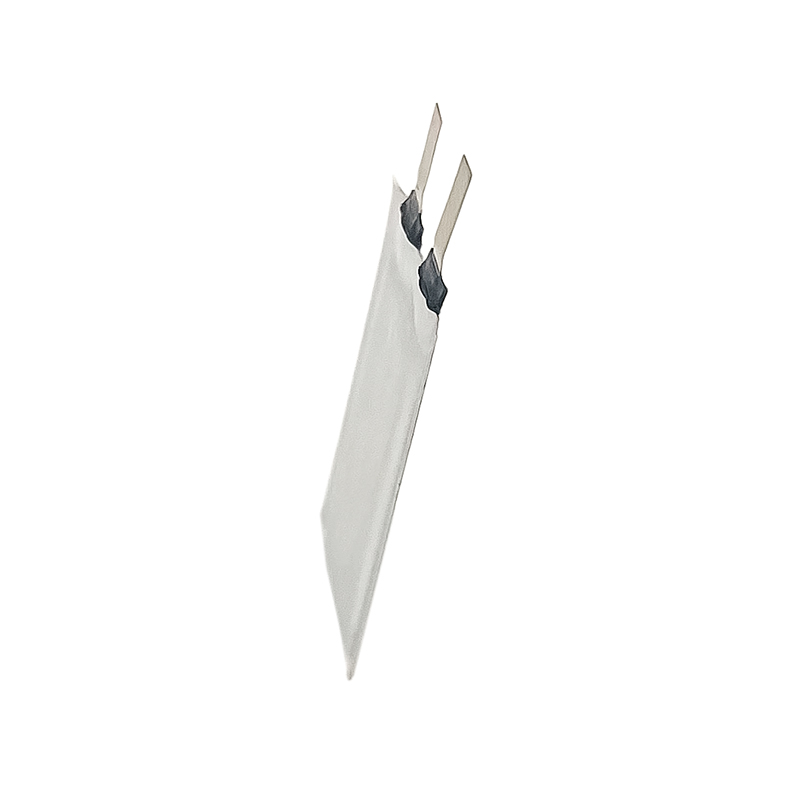

• Ultra thin battery: Optimizes volumetric energy density to deliver sufficient power in slim form factors for smartwatches, medical patches, and flexible electronics.

• High temperature battery: Balances energy density with thermal stability, using specialized cathode materials (e.g., lithium iron phosphate) to maintain performance in high-heat environments without compromising energy storage capacity.

2. Formation

Formation is a critical post-manufacturing process for rechargeable lithium batteries. It involves subjecting newly assembled battery cells to a controlled charge-discharge cycle to activate the positive and negative electrode active materials. This process is essential to unlock the battery’s true performance potential, including optimized charge-discharge efficiency, reduced self-discharge rate, and improved storage stability.

Core Functions of Formation

1. Active Material Activation: The controlled charge-discharge cycle promotes the formation of a stable Solid Electrolyte Interface (SEI) film on the anode surface. This film prevents electrolyte decomposition and ensures long-term battery stability.

2. Performance Optimization: Formation improves the battery’s electrochemical performance, including charge acceptance, discharge voltage stability, and cycle life.

3. Consistency Enhancement: The sorting step during formation helps screen out defective cells and group batteries with similar performance characteristics, laying the foundation for high-quality battery pack assembly.

Relevance to Specialized Batteries

• Lipo battery: Precise formation parameters are critical to ensuring the flexible pouch design maintains stable performance—overly aggressive formation can cause swelling or electrolyte leakage.

• Ultra thin battery: The formation process must be tailored to its thin electrode structure to avoid damaging delicate components while activating active materials effectively.

• High temperature battery: Formation is often conducted at elevated temperatures to simulate real-world operating conditions, ensuring the SEI film remains stable in high-heat environments.

• LiSOCL2 battery: As a primary (non-rechargeable) battery, it does not require a formation process—its performance is optimized during material selection and manufacturing.

3. Capacity Grading

Capacity grading is a key quality control process in lithium battery production. Due to minor variations in manufacturing processes (e.g., electrode coating thickness, electrolyte injection volume), the actual capacity of battery cells produced in the same batch cannot be completely consistent. Capacity grading involves testing cells under standardized charge-discharge conditions and sorting them into groups based on their measured capacity.

Core Objectives of Capacity Grading

1. Ensure Consistency: Grouping cells with similar capacity levels ensures uniform performance in battery packs, preventing overcharging or over-discharging of individual cells.

2. Quality Screening: Eliminates cells with capacity values that fall outside the specified range, reducing the risk of battery pack failure.

3. Optimize Application Matching: Different applications require different capacity levels—grading allows manufacturers to match cells to the exact needs of customers.

Application for Specialized Batteries

• Lipo battery packs for drones and electric vehicles rely heavily on capacity grading to ensure balanced cell performance, which is critical for safe and efficient high-rate discharge.

• Ultra thin battery modules for wearables require strict capacity grading to maintain consistent runtime across devices, as their small size leaves no room for performance variation.

• High temperature battery grading is conducted at target operating temperatures to ensure capacity consistency in harsh environments.

4. Discharge Plateau

The discharge plateau refers to the flat, stable voltage segment in a battery’s discharge curve. It is a key indicator of discharge performance— a higher, longer, and more stable plateau signifies better battery quality.

Industry Standard Measurement

For lithium batteries, the discharge plateau is quantified using the following method:

• Record the capacity when the battery discharges from full charge to 3.6V, denoted as \(C_1\).

• Record the total capacity when the battery discharges to the cut-off voltage of 3.0V, denoted as \(C_0\).

• The discharge plateau ratio is calculated as:

  \(\text{Discharge Plateau Ratio}=\frac{C_1}{C_0} \times 100\%\)

• The industry standard requires a discharge plateau ratio of 70% or higher at a 1C discharge rate.

Relevance to Specialized Batteries

• LiSOCL2 battery: Features an extremely flat discharge plateau, delivering stable voltage output throughout its service life— a critical advantage for industrial sensors and smart meters that require consistent power.

• Lipo battery: A high discharge plateau ratio ensures stable performance for power-hungry devices like drones, preventing voltage drops during high-current operation.

• High temperature battery: Maintaining a stable discharge plateau at elevated temperatures is essential for applications like oil drilling sensors, where voltage fluctuations can lead to data inaccuracies.

5. Trickle Charge

Trickle charge is a low-current charging process designed to compensate for battery self-discharge. It involves applying a continuous, regulated small current to the battery after it has reached full charge, keeping the battery in a near-full charge state without overcharging.

Core Functions of Trickle Charge

1. Compensate for Self-Discharge: Counteracts capacity loss caused by internal side reactions, ensuring the battery remains ready for use during long-term storage.

2. Extend Shelf Life: Prevents deep discharge during storage, which can cause irreversible damage to lithium battery cells.

3. Maintain Readiness: Critical for backup power systems (e.g., emergency lighting, medical devices) that require immediate activation.

Application for Specialized Batteries

• Lipo battery: Trickle charging is commonly used for consumer electronics during long-term storage, but the current must be strictly controlled to avoid overcharging and swelling.

• Ultra thin battery for medical devices relies on trickle charging to maintain full capacity, ensuring the device is operational when needed for patient monitoring.

• LiSOCL2 battery: As a primary battery, it does not require charging—its ultra-low self-discharge rate eliminates the need for trickle charging.

Conclusion: Master Key Metrics to Select the Right Lithium Battery

Understanding terms like energy density, formation, capacity grading, discharge plateau, and trickle charge is essential for optimizing lithium battery performance. For long-term industrial deployments, LiSOCL2 batteries with high volumetric energy density and flat discharge plateaus are the ideal choice. For portable electronics, Lipo batteries with high gravimetric energy density deliver unmatched efficiency. For compact wearables, ultra thin batteries with precise grading ensure consistent runtime. For harsh environments, high temperature batteries with stable formation processes maintain performance under extreme heat.
